5500.0155.1 footprint, schematic symbol and 3D model by SCHURTER

Symbol

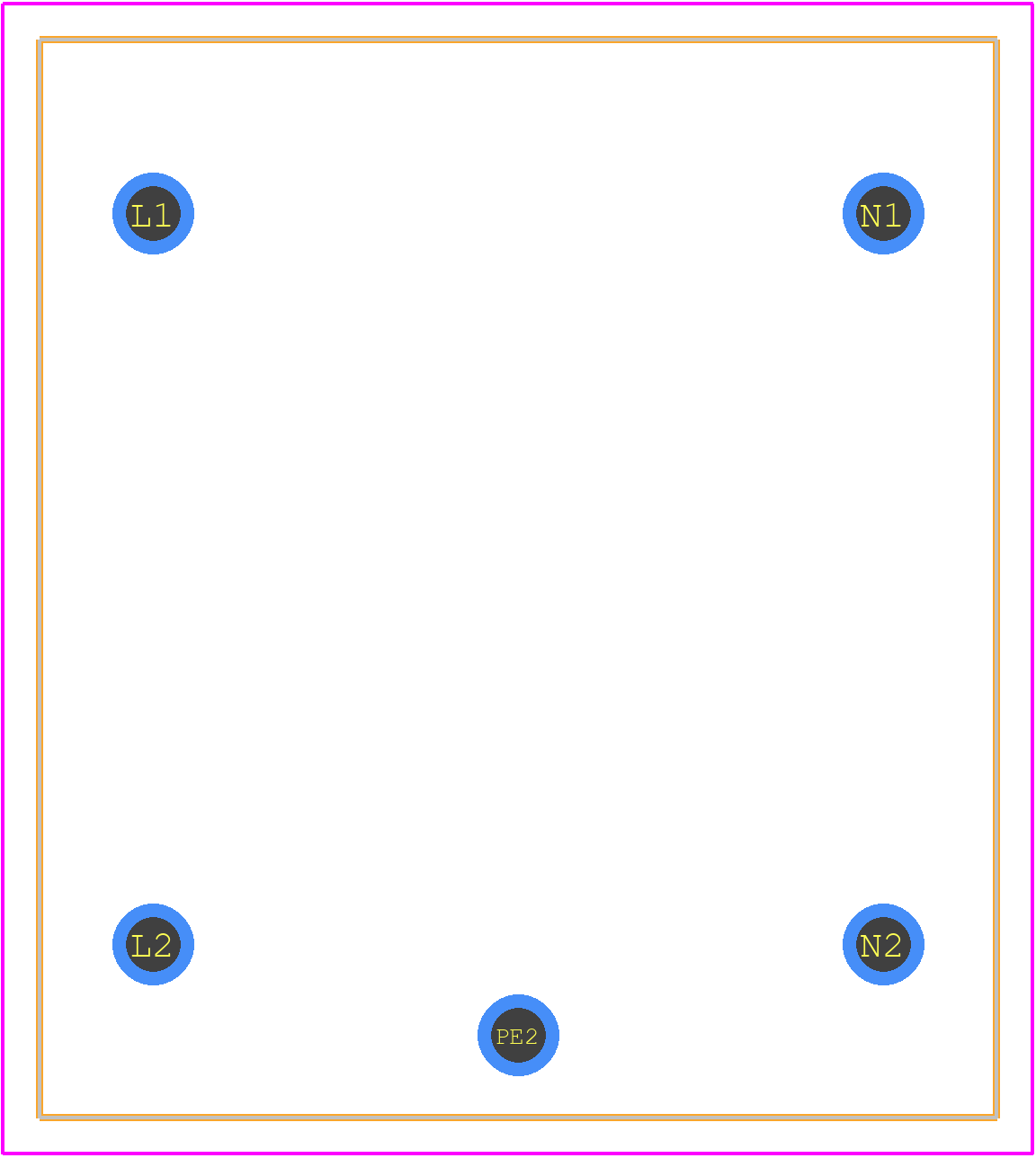

PCB Footprints

3D Models

5500.0155.1 Details

The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to avoid damaging the fuse.
Yes, the 5500.0155.1 fuse is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and securement to prevent damage or dislodging of the fuse.
Yes, the 5500.0155.1 fuse is compatible with lead-free soldering processes. Schurter Electronic Components ensures that their products comply with RoHS and WEEE directives.
The typical response time of the 5500.0155.1 fuse is around 1-2 seconds. However, this may vary depending on the specific application and operating conditions.
The 5500.0155.1 fuse is rated for operation up to 125°C (257°F). While it can withstand high temperatures, it's essential to ensure that the fuse is not exposed to temperatures exceeding its rating.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 5500.0155.1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 5500., or try a keyword search, such as Mains Filters
