5500.0255.1 - SCHURTER

Description: 1-Phase Line Filters ,Standard version ,Without EMC-shield ,series 5500 ,2A .

Download 5500.0255.1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5500.0255.1 - SCHURTER - PCB symbol
click to zoom

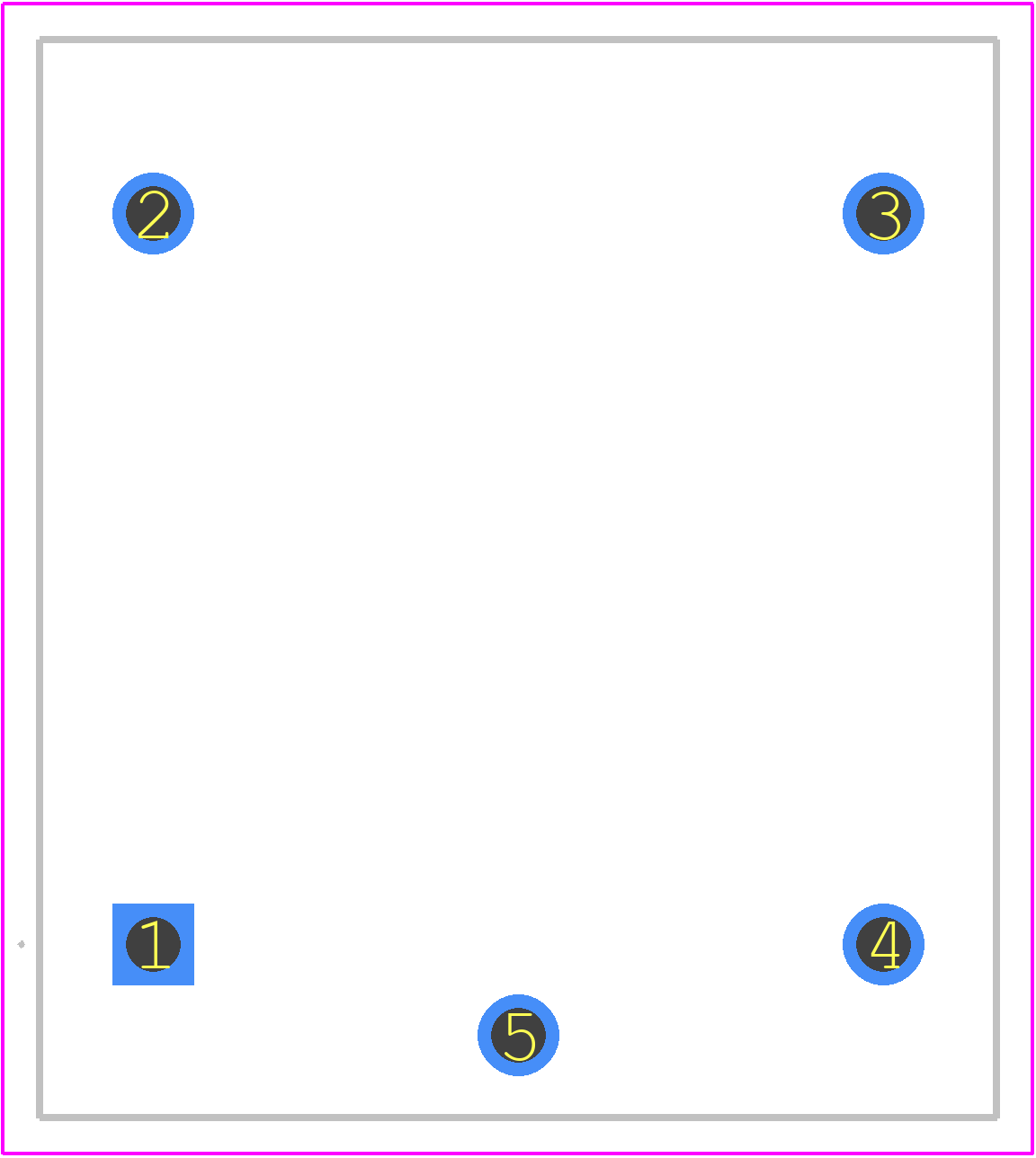

PCB Footprints
5500.0255.1 - SCHURTER PCB footprint - Other - Other - 5500.0255.1-4
click to zoom
3D Models
5500.0255.1 - SCHURTER - 3D model - Other - 5500.0255.1-4
click to zoom

5500.0255.1 Details

  • Manufacturer Part Number:

    5500.0255.1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-5

  • Factory Lead Time:

    11 Weeks, 3 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    7.95

  • Additional Feature:

    INDUCTANCE 4 MILLIHENRY

  • Approvals:

    UL; CUL; VDE; ENEC-10

  • Filter Type:

    SINGLE PHASE EMI FILTER

  • Height:

    23.2 mm

  • High Pot:

    2700 V

  • JESD-609 Code:

    e3

  • Leakage Current-Max:

    0.5 mA

  • Length:

    30 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    5

  • Operating Frequency:

    60Hz Hz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Rated Current:

    2 A

  • Rated Voltage:

    250 V

  • Terminal Finish:

    TIN

  • Width:

    26.6 mm

5500.0255.1 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to avoid damaging the fuse.
  • Yes, the 5500.0255.1 fuse is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the fuse to prevent movement or dislodging during operation.
  • Yes, the 5500.0255.1 fuse is compatible with lead-free soldering processes. Schurter Electronic Components ensures that their products comply with RoHS and REACH regulations.
  • The minimum order quantity for the 5500.0255.1 fuse varies depending on the distributor or supplier. Typically, it ranges from 100 to 1000 pieces. It's best to check with the supplier or distributor for the exact MOQ.
  • The 5500.0255.1 fuse is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper protection and sealing. It's essential to ensure the fuse is protected from moisture, dust, and extreme temperatures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5500.0255.1 Overview

Use the download button to access the 5500.0255.1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5500., or try a keyword search, such as Mains Filters
