5500.0655.1 - SCHURTER

Description: Schurter 5500 Series 6A 250 V ac 50 → 60Hz PCB Mount Power Line Filter, with PC Pin Terminals

Download 5500.0655.1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5500.0655.1 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

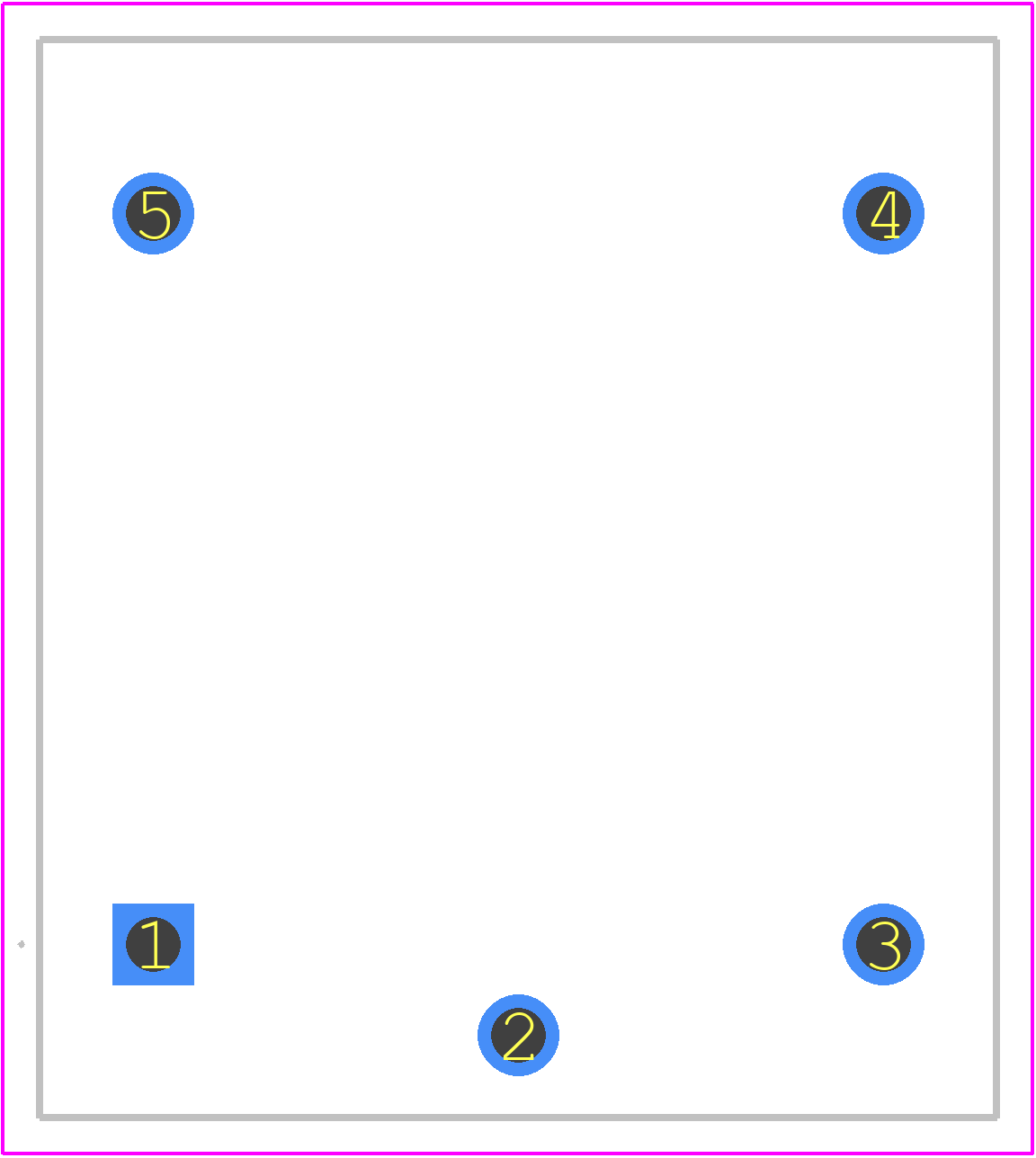

5500.0655.1 - SCHURTER PCB footprint - Other - Other - 5500.0655.1-1
click to zoom
3D Models
5500.0655.1 - SCHURTER - 3D model - Other - 5500.0655.1-1
click to zoom

5500.0655.1 Details

  • Manufacturer Part Number:

    5500.0655.1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-5

  • Factory Lead Time:

    11 Weeks, 3 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    7.95

  • Additional Feature:

    INDUCTANCE 0.7 MILLIHENRY

  • Approvals:

    UL; CUL; VDE; ENEC-10

  • Filter Type:

    SINGLE PHASE EMI FILTER

  • Height:

    23.2 mm

  • High Pot:

    2700 V

  • JESD-609 Code:

    e3

  • Leakage Current-Max:

    0.5 mA

  • Length:

    30 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    5

  • Operating Frequency:

    60Hz Hz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Rated Current:

    6 A

  • Rated Voltage:

    250 V

  • Terminal Finish:

    TIN

  • Width:

    26.6 mm

5500.0655.1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Schurter application notes.
  • The 5500.0655.1 is designed specifically for use with 5x20mm fuses. While it may be possible to use it with other types of fuses, it is not recommended and may not meet safety standards.
  • The operating temperature range for the 5500.0655.1 is -40°C to 125°C, as specified in the datasheet.
  • The 5500.0655.1 is designed to meet the requirements of IEC 60335-1, which includes vibration testing. However, it's recommended to consult with Schurter's application engineers to ensure the fuse holder meets the specific vibration requirements of your application.
  • The 5500.0655.1 has a protection rating of IP40, which means it is protected against solid objects larger than 1mm, but not protected against water. It's not recommended to use this fuse holder in a humid or wet environment without additional protection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5500.0655.1 Overview

Use the download button to access the 5500.0655.1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5500., or try a keyword search, such as Mains Filters
