5500.1055.1 - SCHURTER

Description: 1-Phase Line Filters ,Standard version ,Without EMC-shield ,series 5500 ,10 A .

Download 5500.1055.1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5500.1055.1 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

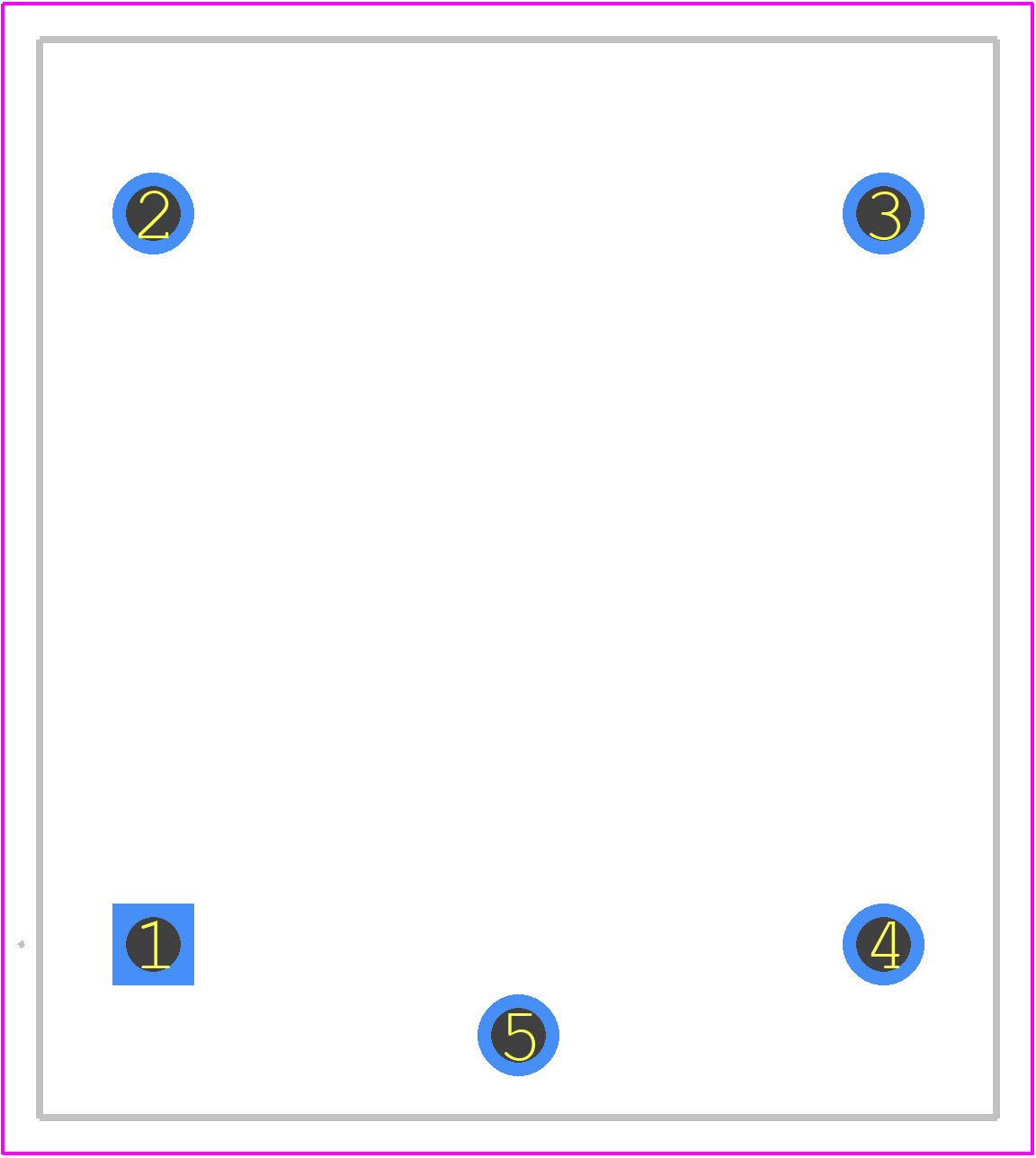

5500.1055.1 - SCHURTER PCB footprint - Other - Other - 5500.1055.1-2
click to zoom
3D Models
5500.1055.1 - SCHURTER - 3D model - Other - 5500.1055.1-2
click to zoom

5500.1055.1 Details

  • Manufacturer Part Number:

    5500.1055.1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-5

  • Factory Lead Time:

    11 Weeks, 3 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    8.2

  • Additional Feature:

    INDUCTANCE 0.3 MILLIHENRY

  • Approvals:

    UL; CUL; VDE; ENEC-10

  • Filter Type:

    SINGLE PHASE EMI FILTER

  • Height:

    23.2 mm

  • High Pot:

    2700 V

  • JESD-609 Code:

    e3

  • Leakage Current-Max:

    0.5 mA

  • Length:

    30 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    5

  • Operating Frequency:

    60Hz Hz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Rated Current:

    10 A

  • Rated Voltage:

    250 V

  • Terminal Finish:

    TIN

  • Width:

    26.6 mm

5500.1055.1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Schurter application notes.
  • Yes, the 5500.1055.1 is designed to withstand vibrations up to 10g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • The 5500.1055.1 is designed for use with fuses up to 10A, but it's recommended to check the fuse manufacturer's specifications for compatibility and to ensure the fuse holder can handle the maximum current rating.
  • The 5500.1055.1 has a protection rating of IP40, which means it's protected against solid objects larger than 1mm, but not against water or moisture. It's not recommended for use in humid or wet environments without additional protection.
  • The 5500.1055.1 has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5500.1055.1 Overview

Use the download button to access the 5500.1055.1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5500., or try a keyword search, such as Mains Filters
