5500.2014 footprint, schematic symbol and 3D model by SCHURTER

Symbol

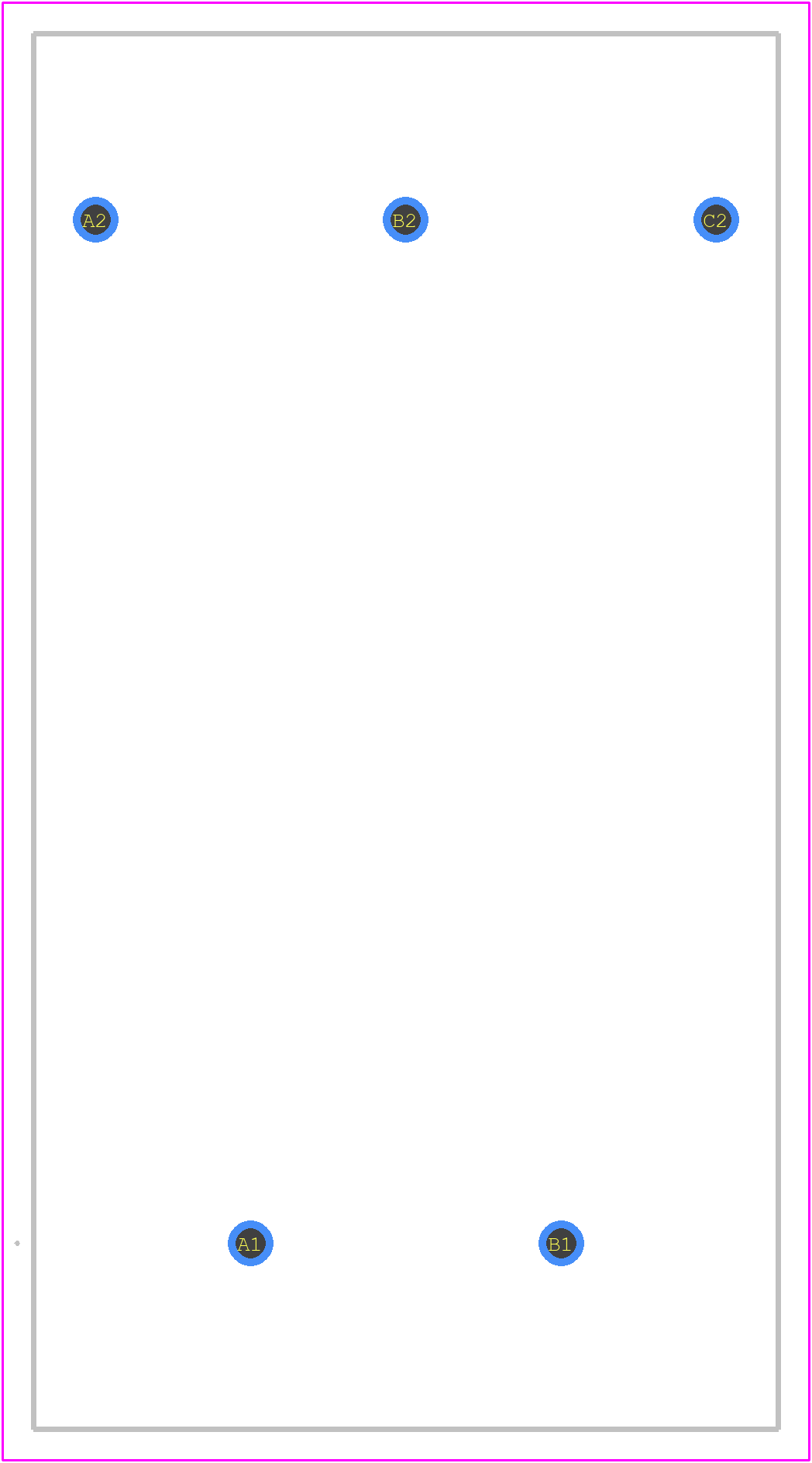

PCB Footprints

3D Models

5500.2014 Details

The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Schurter application notes.
The 5500.2014 is designed specifically for use with 5x20mm fuses. While it may be possible to use it with other types of fuses, it is not recommended and may not meet safety standards.
The 5500.2014 is designed to meet the requirements of IEC 60127-6, which includes vibration testing. However, it's recommended to consult with Schurter's application engineers to ensure the product meets the specific vibration requirements of your application.
The 5500.2014 is designed for indoor use, but it can be used in outdoor or harsh environments with proper protection and sealing. Consult with Schurter's application engineers to ensure the product meets the specific environmental requirements of your application.
The 5500.2014 is designed to accept wires up to 2.5 mm² (AWG 14) in size. Using larger wires may not be possible or may require special adapters.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 5500.2014 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 5500., or try a keyword search, such as Mains Filters
