5500.2016 - SCHURTER

Description: Single Phase EMC/EMI Line Filter 1.6 A 250V 50/60Hz Single Stage PC Pins, 6mH, -25°C to 85°C

Download 5500.2016 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5500.2016 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

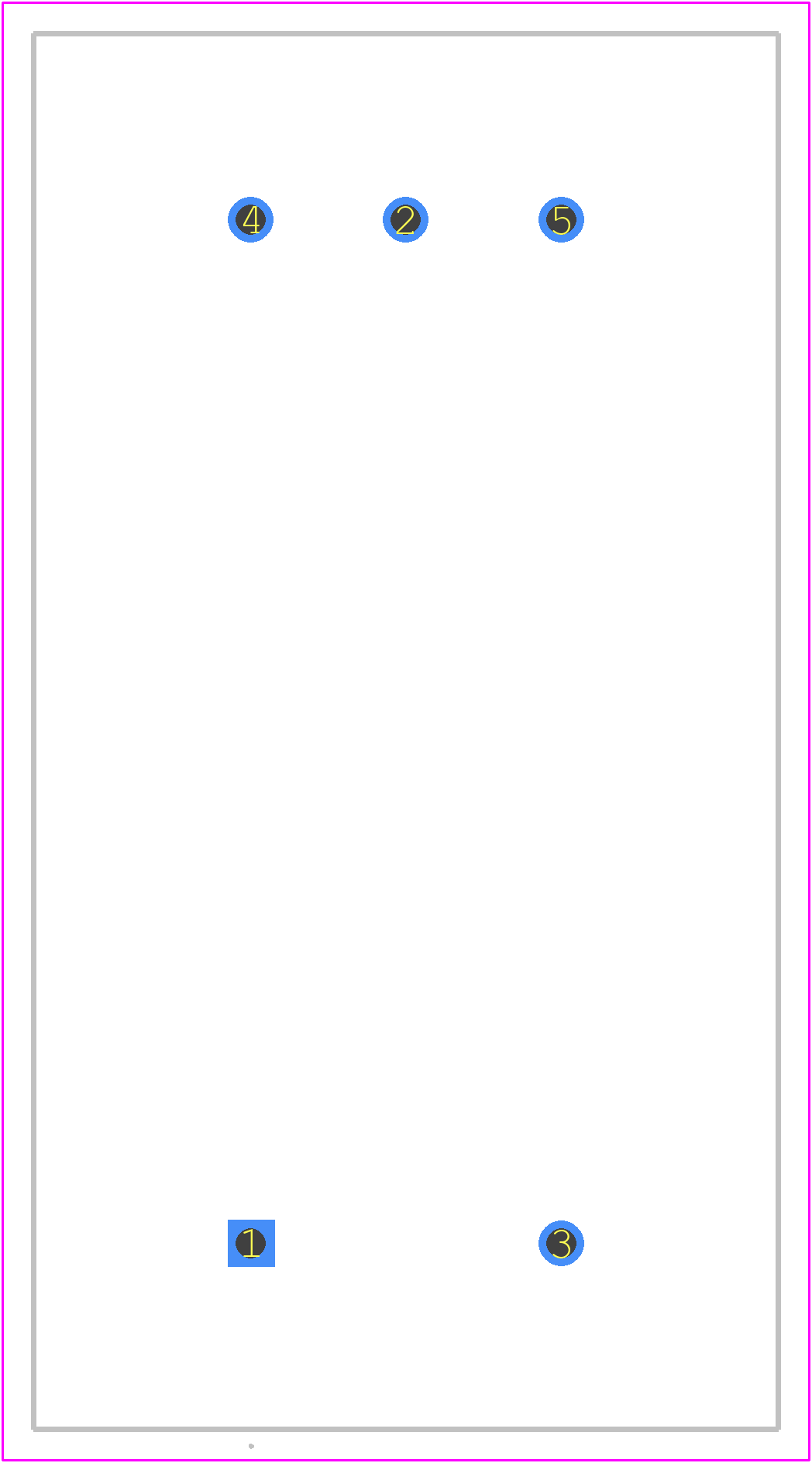

5500.2016 - SCHURTER PCB footprint - Other - Other - 5500.2016-2
click to zoom
3D Models
5500.2016 - SCHURTER - 3D model - Other - 5500.2016-2
click to zoom

5500.2016 Details

  • Manufacturer Part Number:

    5500.2016

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    40 Weeks, 3 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    INDUCTANCE 6 MILLIHENRY

  • Approvals:

    UL; CUL; VDE; ENEC-10

  • Filter Type:

    SINGLE PHASE EMI FILTER

  • Height:

    17.5 mm

  • High Pot:

    2700 V

  • JESD-609 Code:

    e3

  • Leakage Current-Max:

    0.25 mA

  • Length:

    45 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    5

  • Operating Frequency:

    60Hz Hz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Rated Current:

    1.6 A

  • Rated Voltage:

    250 V

  • Terminal Finish:

    Tin (Sn)

  • Width:

    24 mm

5500.2016 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Schurter application notes.
  • Yes, the 5500.2016 is designed to withstand vibrations up to 10g according to IEC 60068-2-6, but it's recommended to consult with Schurter's technical support for specific application guidance.
  • The 5500.2016 is compatible with soldering temperatures up to 260°C for 10 seconds, but it's recommended to follow the recommended soldering profile to avoid damage to the component.
  • The 5500.2016 has a moisture sensitivity level of 3, which means it can withstand humid environments, but it's not designed for immersion in water. Consult with Schurter's technical support for specific guidance on environmental conditions.
  • The recommended wire size for the screw terminals is 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14), as specified in the Schurter datasheet.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5500.2016 Overview

Use the download button to access the 5500.2016 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5500., or try a keyword search, such as Mains Filters
