- Part Number 5500.2018
- Manufacturer SCHURTER
- Pin Count 5
- Part Category Filter
- Package Category Other

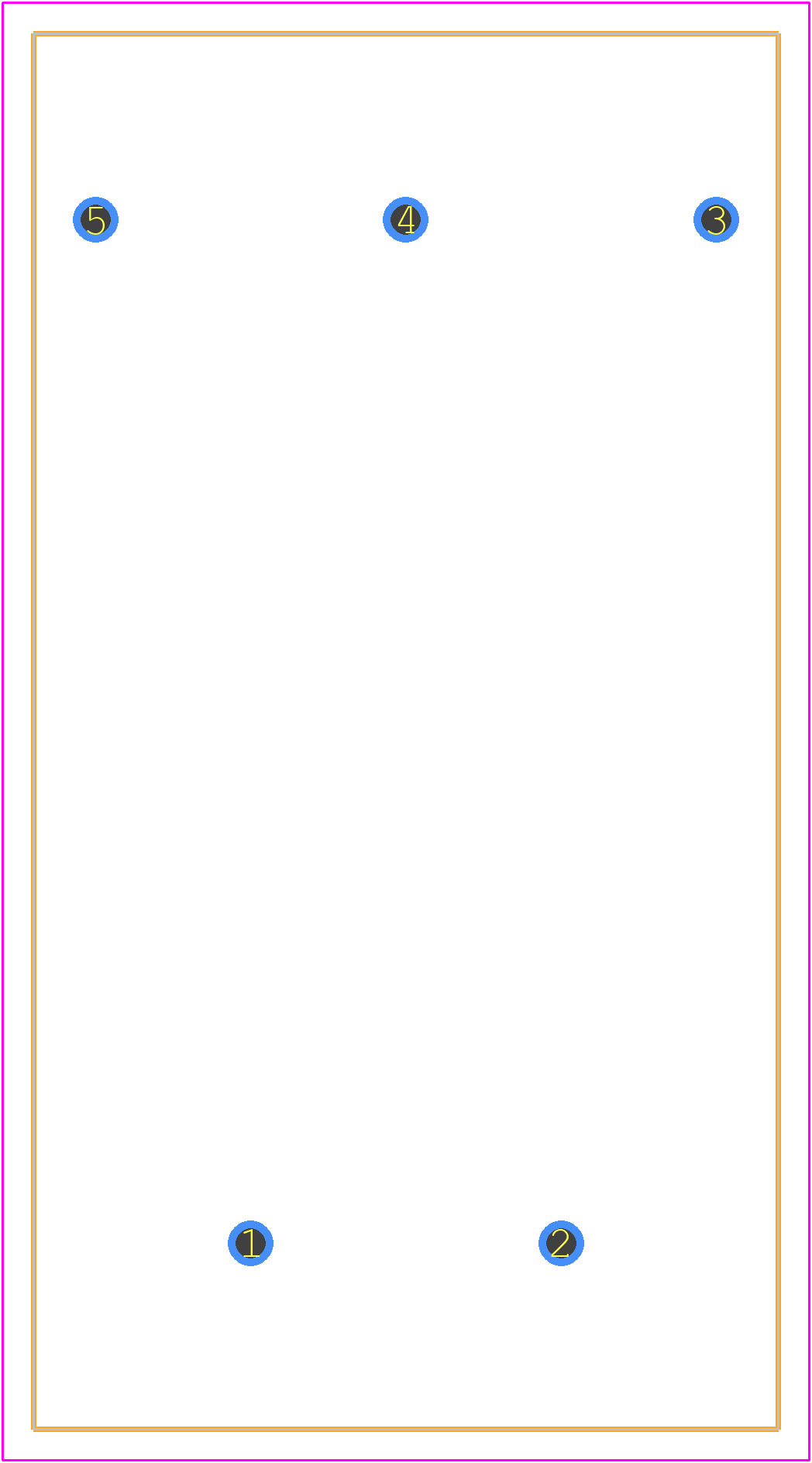

- Footprint Name Other - 5500.2018-5
- Released Date Apr 26, 2020
- Last Modified Date Aug 27, 2025 5:26 AM UTC
- Pinout / Pin List Click Here (Member Only)
5500.2018 Details
-
Manufacturer Part Number:
5500.2018
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Factory Lead Time:
40 Weeks, 3 Days
-
Manufacturer:
Schurter Electronic Components
-
YTEOL:
8
-
Additional Feature:
INDUCTANCE 1 MILLIHENRY
-
Approvals:
UL; CUL; VDE; ENEC-10
-
Filter Type:
SINGLE PHASE EMI FILTER
-
Height:
17.5 mm
5500.2018 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Schurter application notes.
-
Yes, the 5500.2018 is designed to withstand vibrations up to 10g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
-
Yes, the 5500.2018 is compatible with high-temperature soldering up to 260°C for 10 seconds, making it suitable for use in reflow soldering processes.
-
The recommended wire size for the screw terminals is 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14).
-
Yes, the 5500.2018 is designed to operate in humid environments with a relative humidity of up to 95% at 40°C, making it suitable for use in industrial and commercial applications.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
5500.2018 Overview
Use the download button to access the 5500.2018 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5500.,
or try a keyword search, such as Mains Filters
