The recommended torque for the 5501MBLKREDGRN's actuator is typically around 0.5-1.5 N·m (7-21 in-lbs). However, it's best to consult with E-Switch Inc or refer to the product's mechanical specifications for the exact recommended torque.
The 5501MBLKREDGRN is designed to withstand moderate levels of vibration. However, for high-vibration environments, it's recommended to consult with E-Switch Inc or perform additional testing to ensure the switch's reliability and performance.
The 5501MBLKREDGRN has a rating of IP40, which means it provides protection against solid objects larger than 1 mm and is not intended for use in outdoor or harsh environmental conditions. For such applications, consider using switches with higher IP ratings or consult with E-Switch Inc for custom solutions.
For cleaning the 5501MBLKREDGRN, use a soft, dry brush or a lint-free cloth to remove any debris or dust. Avoid using harsh chemicals, solvents, or liquids, as they may damage the switch's components or compromise its performance.
The 5501MBLKREDGRN is designed for panel mounting, but it can also be mounted on a PCB with the correct adapter or socket. Consult with E-Switch Inc or a qualified engineer to ensure proper PCB design and assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5501MBLKREDGRN Overview

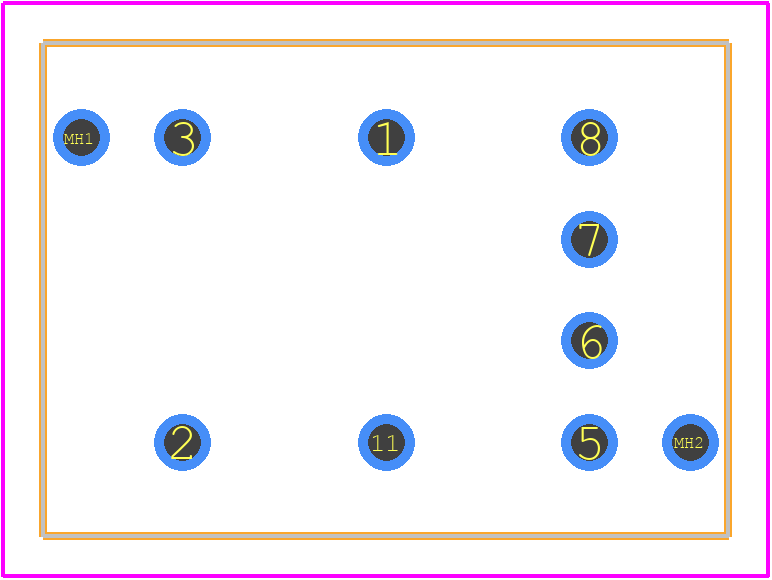

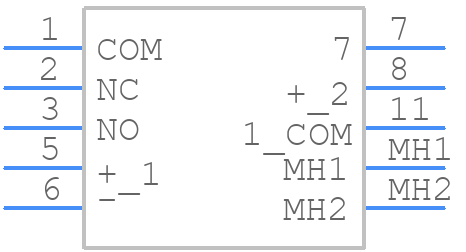

Use the download button to access the 5501MBLKREDGRN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5501M,
or try a keyword search, such as Other Switches
