Coto Technology provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
To ensure the relay operates within its specified temperature range, consider the ambient temperature, power dissipation, and thermal resistance. Use thermal management techniques like heat sinks, thermal interfaces, and airflow management to maintain the recommended temperature range.
The recommended drive circuitry for the 5502-24-1 typically includes a transistor or FET driver, a current-limiting resistor, and a diode for back-EMF protection. The specific circuitry may vary depending on the application and required switching speed.
To minimize EMI and RFI emissions, use proper PCB layout techniques, such as separating analog and digital circuits, using ground planes, and adding EMI filters or shielding. Additionally, ensure the relay is properly decoupled and bypassed.
Store the 5502-24-1 in a dry, cool place, away from direct sunlight and moisture. Handle the relay by the body, avoiding touching the pins or electrical contacts. Use anti-static wrist straps or mats when handling the relay to prevent ESD damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5502-24-1 Overview

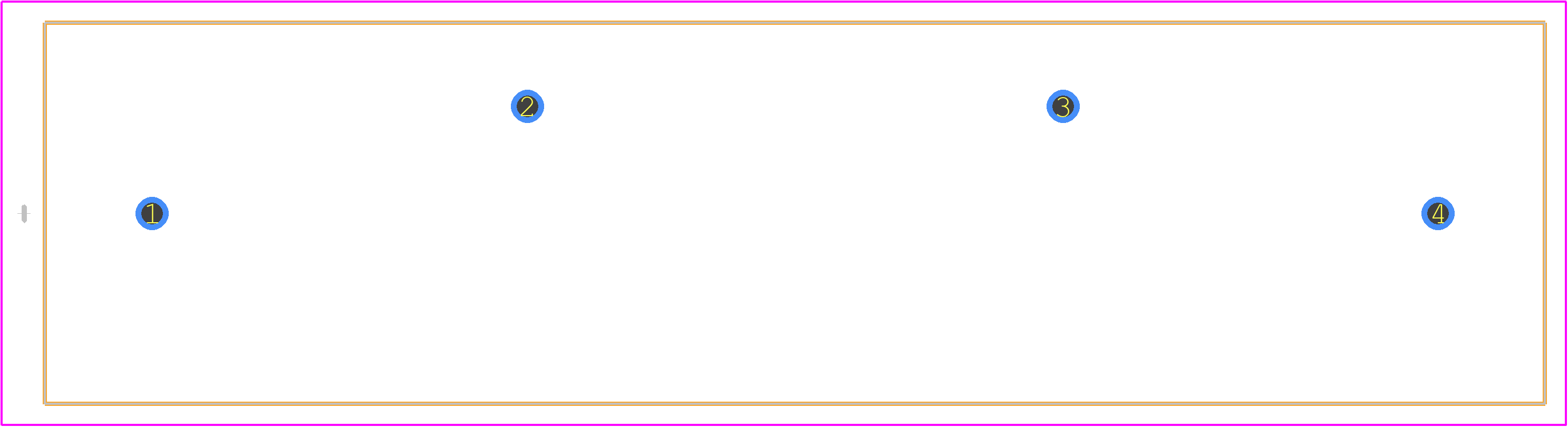

Use the download button to access the 5502-24-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5502-,
or try a keyword search, such as Reed Relays
