Coto Technology provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical stress.
To prevent damage to the relay, it's crucial to handle the device in a way that minimizes exposure to strong magnetic fields, such as those generated by magnets, motors, or transformers. Use anti-static wrist straps, mats, and containers to prevent electrostatic discharge (ESD) damage.
While the datasheet specifies the maximum operating voltage, it may not explicitly state the maximum allowable voltage transient or spike. Coto Technology's application engineers can provide guidance on this topic, and it's essential to consider the relay's voltage rating, as well as the system's overall voltage transient protection.
To prevent contact contamination, follow proper assembly and handling procedures, such as using clean and dry tools, avoiding touching the contacts, and storing the relay in a clean, dry environment. In addition, consider using contact cleaning or lubricating materials, as recommended by Coto Technology.
The datasheet may provide general information on the relay's operating life, but the actual lifespan can vary depending on factors like operating frequency, voltage, and environmental conditions. Consult with Coto Technology's application engineers to determine the relay's expected operating life in your specific application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5504-12-1 Overview

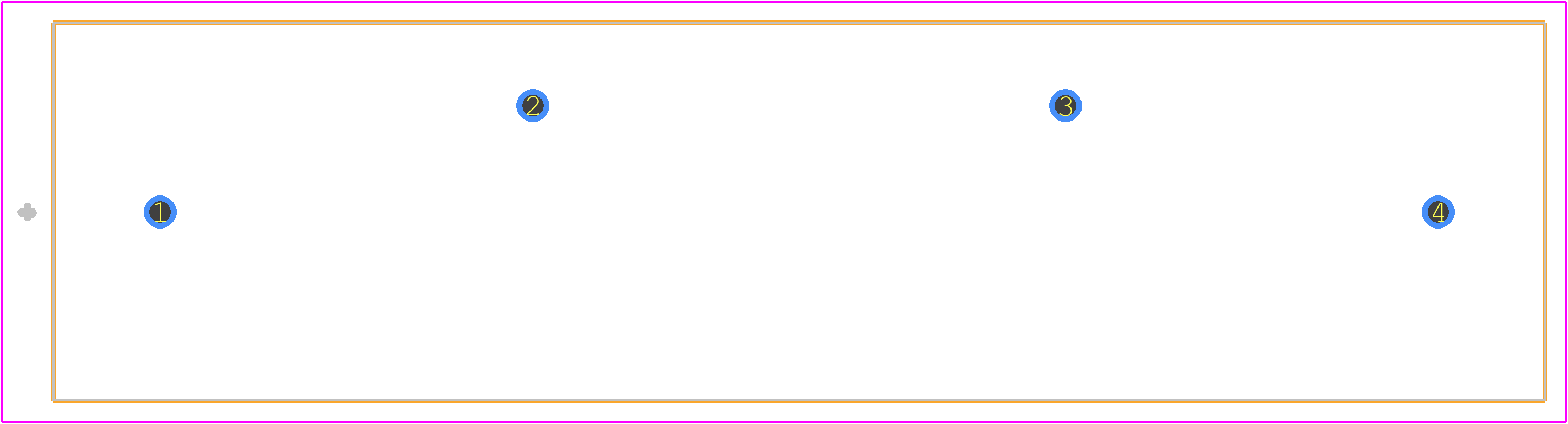

Use the download button to access the 5504-12-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5504-,
or try a keyword search, such as Reed Relays
