551-1107-004F - Dialight

Description: LED Circuit Board Indicator LED Circuit Board Indicator 4 Wide Red (x 4) Diffused, Tinted 1.7V 2mA Through Hole, Right Angle

Download 551-1107-004F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

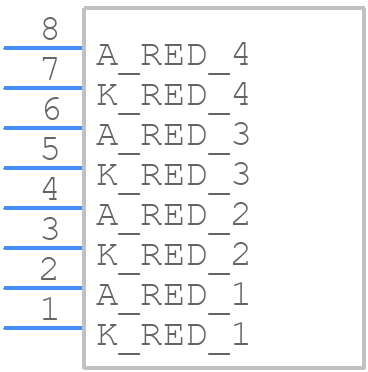

551-1107-004F - Dialight - PCB symbol
click to zoom
PCB Footprints
551-1107-004F - Dialight PCB footprint - Other - Other - 17.27mm x 6.35mm
click to zoom

551-1107-004F Details

  • Manufacturer Part Number:

    551-1107-004F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-8

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Dialight

  • YTEOL:

    6

  • Additional Feature:

    HIGH RELIABILITY

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    SEPARATE, 4 ELEMENTS

  • Forward Current-Max:

    0.007 A

  • Forward Voltage-Max:

    2.5 V

  • JESD-609 Code:

    e4

  • Luminous Intensity-Min:

    0.0012 cd

  • Luminous Intensity-Nom:

    1.6 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    4

  • Number of LEDs in Array:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    7.11 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    635 nm

  • Shape:

    ROUND

  • Size:

    3 mm

  • Surface Mount:

    NO

  • T-code:

    T-1

  • Terminal Finish:

    Copper/Nickel/Silver (Cu/Ni/Ag)

  • Terminal Pitch:

    2.54 mm

  • Viewing Angle:

    60 deg

551-1107-004F Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 551-1107-004F is -40°C to 85°C (-40°F to 185°F).
  • Yes, the 551-1107-004F is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • The typical lifespan of the 551-1107-004F LED indicator is 50,000 hours or more, depending on the operating conditions and usage.
  • Yes, the 551-1107-004F is designed to withstand high-vibration applications, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the 551-1107-004F LED indicator is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in the European Union and other regions with similar regulations.
