5525DSO-DB001DS - TE Connectivity

Description: Configuration Features: Leads/Pins Gull Wing | Dimensions: Dimensions 12.5 x 7.9 MM | Dimensions .49 x .31 INCH | Electrical Characteristics: Board Level Pressure Sensor Supply Voltage 1.8 – 3.6 V | Operation/Application: Output/Span 24 bit ADC | Output Interface I²C and SPI (Mode 0, 3) | Proof Pressure Range 60 psi | Board Level Pressure Sensor Accuracy ±0.25% Span | Pressure 1 PSI | Packaging Features: Package Style Dual Barb | Board Level Pressure Sensor Package SOIC-14 | Product Type Features: Board

Download 5525DSO-DB001DS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

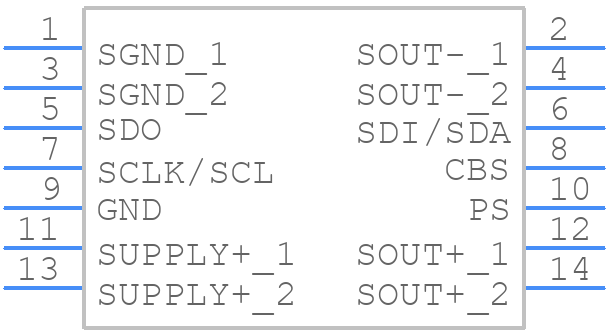

5525DSO-DB001DS - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
5525DSO-DB001DS - TE Connectivity PCB footprint - Other - Other - 5525DSO-DB001DS
click to zoom
3D Models
5525DSO-DB001DS - TE Connectivity - 3D model - Other - 5525DSO-DB001DS
click to zoom

5525DSO-DB001DS Details

  • Manufacturer Part Number:

    5525DSO-DB001DS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    22 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

5525DSO-DB001DS Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 5525DSO-DB001DS is designed to withstand vibrations up to 10G (10-2000 Hz) and is suitable for use in high-vibration environments.
  • The operating temperature range for the 5525DSO-DB001DS is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 5525DSO-DB001DS is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The mating cycle life of the 5525DSO-DB001DS is 500 cycles minimum.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5525DSO-DB001DS Overview

Use the download button to access the 5525DSO-DB001DS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5525D, or try a keyword search, such as Pressure Sensors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
