5525DSO-SB005GS - TE Connectivity

Description: Configuration Features: Leads/Pins Gull Wing | Dimensions: Dimensions 12.5 x 7.9 MM | Dimensions .49 x .31 INCH | Electrical Characteristics: Board Level Pressure Sensor Supply Voltage 1.8 – 3.6 V | Operation/Application: Pressure 5 PSI | Output Interface I²C and SPI (Mode 0, 3) | Board Level Pressure Sensor Accuracy ±0.5 %FSS | Output/Span 24 bit ADC | Proof Pressure Range 60 psi | Packaging Features: Board Level Pressure Sensor Package SOIC-14 | Package Style Single Barb | Product Type Features: Board

Download 5525DSO-SB005GS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

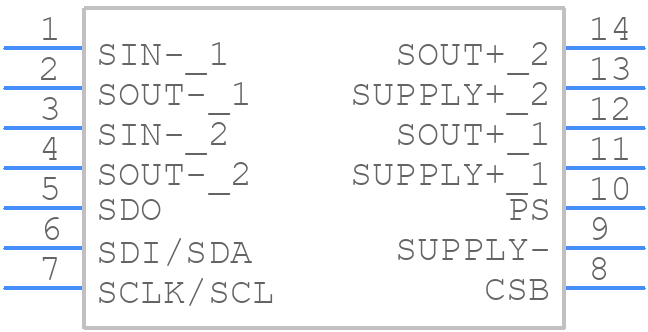

5525DSO-SB005GS - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
5525DSO-SB005GS - TE Connectivity PCB footprint - Other - Other - 5525DSO-SB005GS-2
click to zoom
3D Models
5525DSO-SB005GS - TE Connectivity - 3D model - Other - 5525DSO-SB005GS-2
click to zoom

5525DSO-SB005GS Details

  • Manufacturer Part Number:

    5525DSO-SB005GS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

5525DSO-SB005GS Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, but it's recommended to consult the TE Connectivity application note for specific guidance.
  • Yes, the 5525DSO-SB005GS is designed to withstand vibrations and is suitable for use in harsh environments. However, it's recommended to consult TE Connectivity's vibration testing data and application notes for specific guidance.
  • The maximum operating temperature for the 5525DSO-SB005GS is 125°C, but it's recommended to consult the datasheet and application notes for specific temperature derating guidelines.
  • Yes, the 5525DSO-SB005GS is designed to operate in humid environments and meets the requirements of IEC 60529 IP67. However, it's recommended to consult TE Connectivity's environmental testing data and application notes for specific guidance.
  • The mating cycle life of the 5525DSO-SB005GS is 500 cycles minimum, but it's recommended to consult TE Connectivity's testing data and application notes for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5525DSO-SB005GS Overview

Use the download button to access the 5525DSO-SB005GS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5525D, or try a keyword search, such as Pressure Sensors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
