553-0122-004F - Dialight

Description: LED Circuit Board Indicators Bi-Level CBI

Download 553-0122-004F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

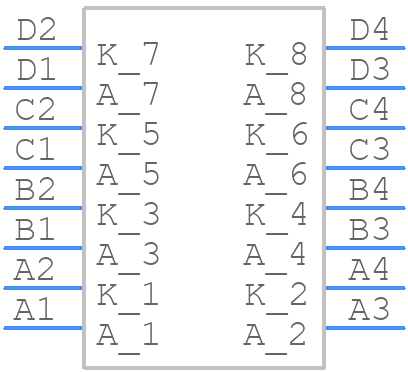

553-0122-004F - Dialight - PCB symbol
click to zoom
PCB Footprints

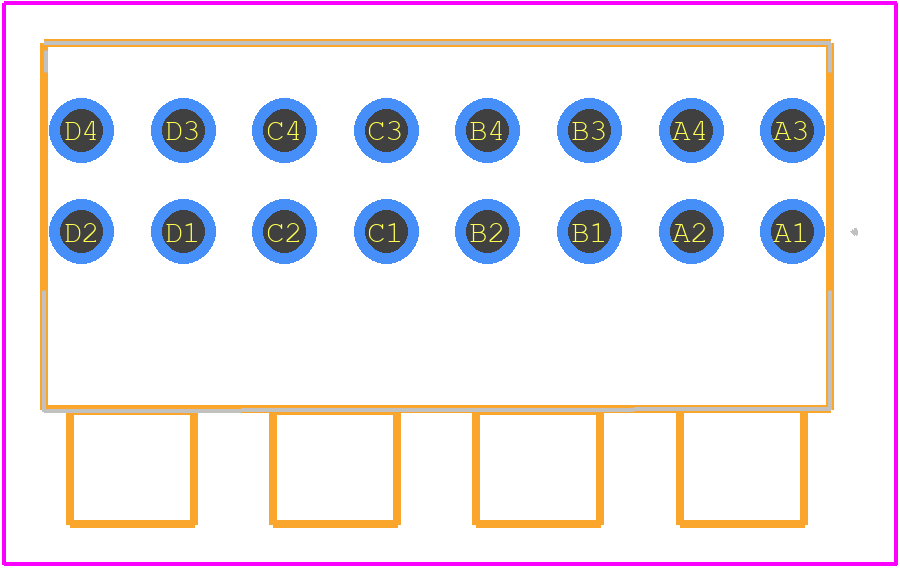

553-0122-004F - Dialight PCB footprint - Other - Other - 553-0122-004F-1
click to zoom
3D Models
553-0122-004F - Dialight - 3D model - Other - 553-0122-004F-1
click to zoom

553-0122-004F Details

  • Manufacturer Part Number:

    553-0122-004F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC PACKAGE-16

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Dialight

  • YTEOL:

    6

  • Additional Feature:

    HIGH RELIABILITY

  • Color:

    GREEN

  • Configuration:

    SEPARATE, 8 ELEMENTS

  • Forward Current-Max:

    0.025 A

  • JESD-609 Code:

    e1

  • Lens Type:

    DIFFUSED

  • Luminous Intensity-Nom:

    16.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    10.67 mm

  • Packing Method:

    TUBE

  • Peak Wavelength:

    563 nm

  • Shape:

    ROUND

  • Size:

    3.1 mm

  • Surface Mount:

    NO

  • T-code:

    T-1

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Pitch:

    2.54 mm

  • Viewing Angle:

    45 deg

553-0122-004F Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 553-0122-004F is -40°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
  • Yes, the 553-0122-004F is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • The typical lifespan of the 553-0122-004F is 50,000 hours, although this can vary depending on operating conditions and environmental factors.
  • Yes, the 553-0122-004F is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the 553-0122-004F is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in the European Union and other regions with similar regulations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

553-0122-004F Overview

Use the download button to access the 553-0122-004F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 553-0, or try a keyword search, such as Visible LEDs
