5530711306F - Dialight

Description: 553 Series 3 mm Bi-Level CBI 2x6 Array R/G,R/G .200 Housing

Download 5530711306F Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 5530711306F model

Email notifications will be applied after download.

Send part feedback

Symbol

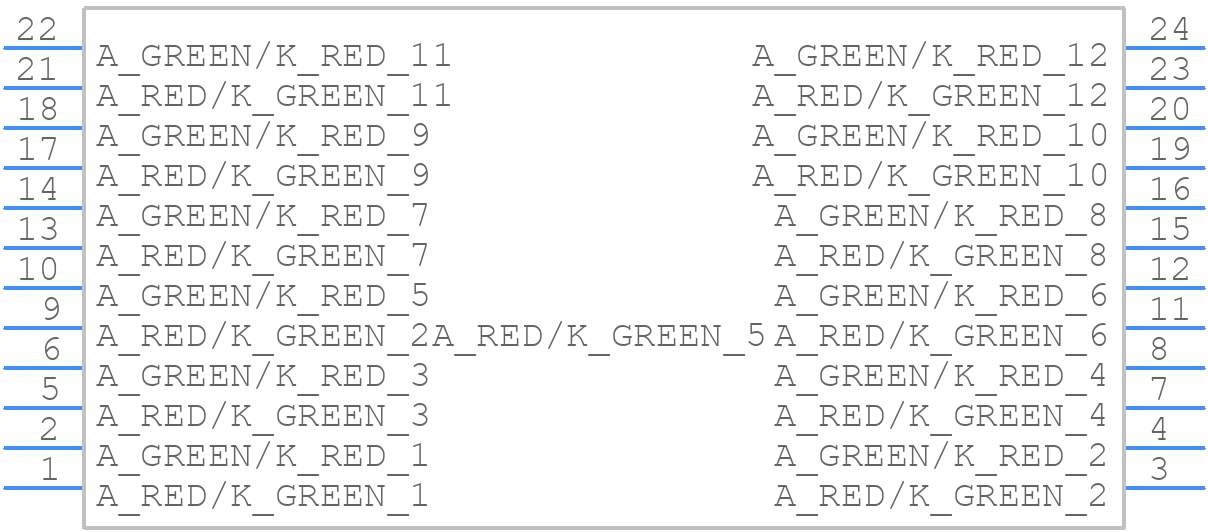

5530711306F - Dialight - PCB symbol

PCB Footprints

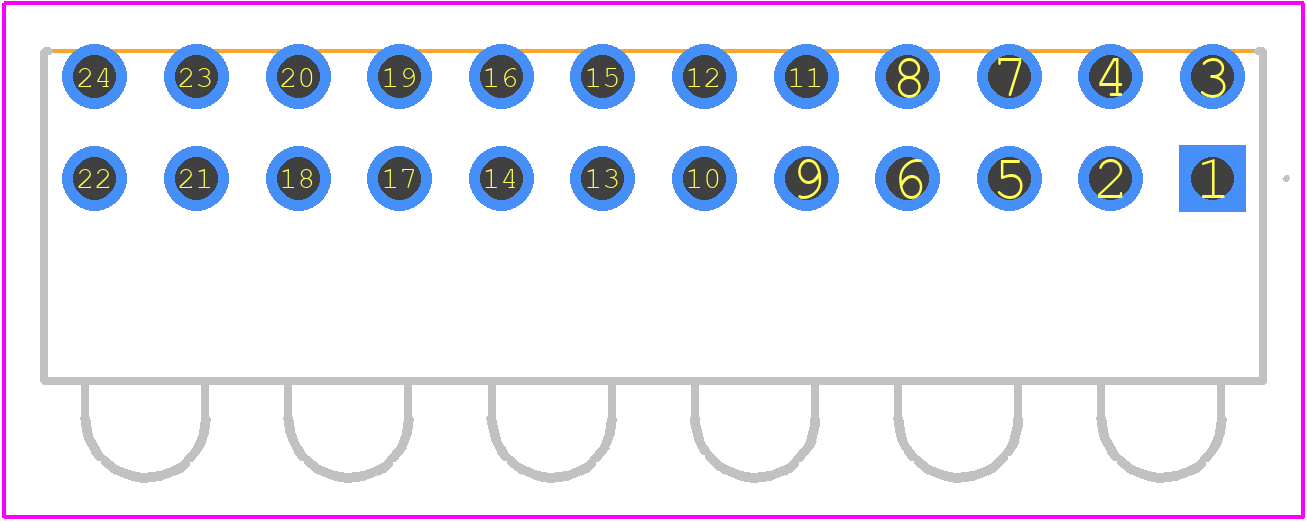

5530711306F - Dialight PCB footprint - Other - Other - 5530711306F-2

3D Models

5530711306F - Dialight - 3D model - Other - 5530711306F-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5530711306F
Part Number 5530711306F
Manufacturer Dialight
Pin Count 24
Part Category LED (Multiple)
Package Category Other
Footprint Name Other - 5530711306F-2
Released Date Jul 21, 2025
Last Modified Date Jul 21, 2025 12:26 PM UTC
Pinout / Pin List Click Here (Member Only)

5530711306F Details

Manufacturer Part Number:
5530711306F
Manufacturer:
Dialight

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

5530711306F Overview

Use the download button to access the 5530711306F schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 55307, or try a keyword search, such as Visible LEDs
