- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 5536501-1
- Part Number 5536501-1
- Manufacturer TE Connectivity
- Pin Count 26
- Part Category Connector
- Package Category Other

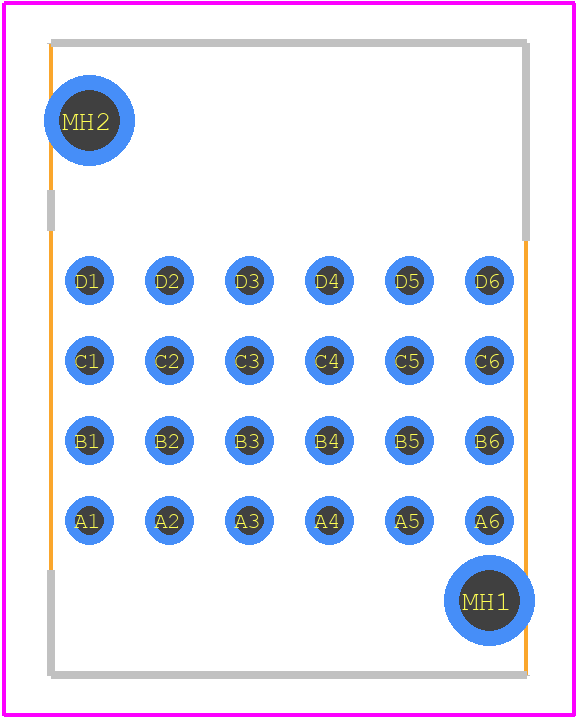

- Footprint Name Other - 5536501-1-2
- Released Date May 15, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
5536501-1 Details
-
Manufacturer Part Number:
5536501-1
-
Brand Name:
AMP
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
8 Weeks
-
Manufacturer:
TE Connectivity
-
Connector Type:
BOARD CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
5536501-1 Frequently Asked Questions (FAQs)
-
The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 5536501-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 standard for vibration resistance, making it suitable for use in applications such as transportation, industrial, and aerospace.
-
The 5536501-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and aerospace.
-
Yes, the 5536501-1 connector is designed for automated assembly processes. Its design and packaging are optimized for high-volume production, making it an ideal choice for manufacturers who require efficient and reliable assembly.
-
The 5536501-1 connector has an IP67 rating, which means it is protected against solid objects and can withstand immersion in water up to 1 meter (3.3 feet) for up to 30 minutes.
Trust Checks
Expert Contribution
System Verified
Community Approved
5536501-1 Overview

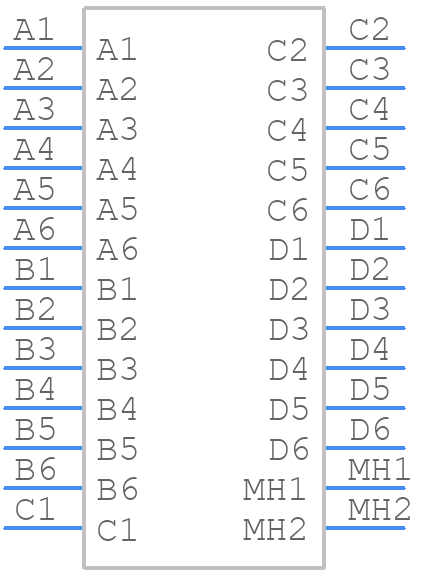

Use the download button to access the 5536501-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 55365,
or try a keyword search, such as Headers and Edge Type Connectors
