5552744-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Connector Profile Standard | Configuration Features: Number of Rows 2 | Number of Positions 64 | PCB Mount Orientation Right Angle | Contact Features: PCB Contact Termination Area Plating Material Tin | Contact Current Rating (Max) 1 AMP | Contact Mating Area Plating Material Thickness 30 MICIN | Contact Base Material Copper Alloy | Contact Mating Area Plating Material Gold | Dimensions: Row-to-Row Spacing 4.3 MM | Panel Thickness (Recommended) 1.57 MM | Row-to-R

Download 5552744-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5552744-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

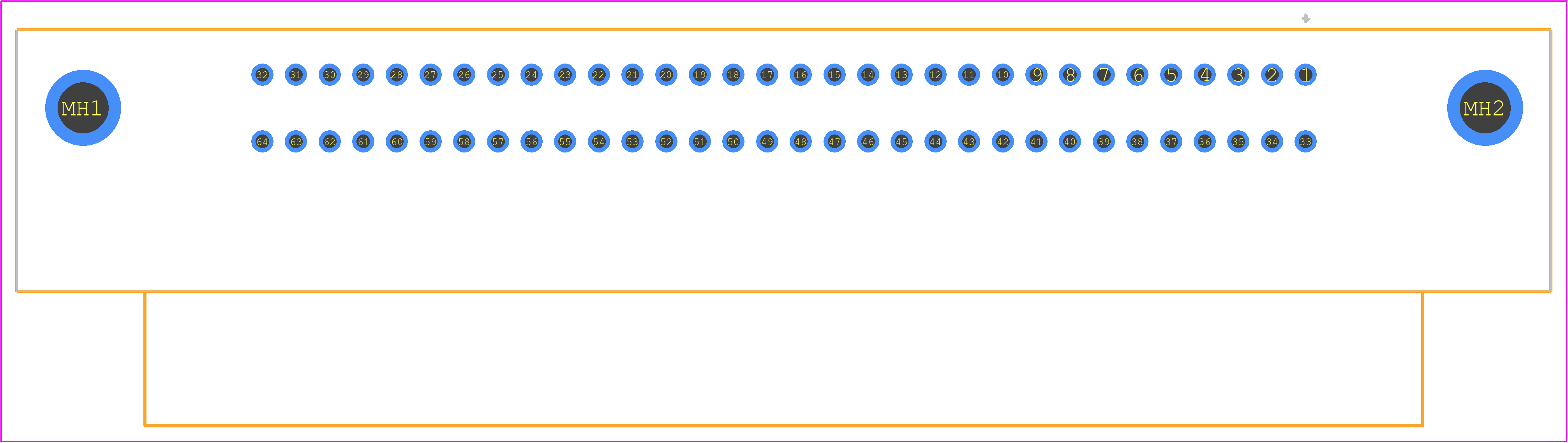

5552744-1 - TE Connectivity PCB footprint - Other - Other - 5552744-1-1
click to zoom
3D Models
5552744-1 - TE Connectivity - 3D model - Other - 5552744-1-1
click to zoom

5552744-1 Details

  • Manufacturer Part Number:

    5552744-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    11 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.5

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mating Contact Row Spacing:

    0.169 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #4-40

  • Mounting Option 2:

    THREADED INSERT

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.007 inch

  • Terminal Pitch:

    2.16 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    64

  • UL Flammability Code:

    94V-0

5552744-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5552744-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 standard for vibration resistance, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The 5552744-1 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the temperature rating may vary depending on the specific application and environmental conditions.
  • Yes, the 5552744-1 connector is designed to operate in harsh environments. It features a sealed construction and is resistant to moisture, dust, and chemicals, making it suitable for use in industrial, transportation, and outdoor applications.
  • Yes, the 5552744-1 connector is designed to be compatible with other TE Connectivity products, including cable assemblies and PCB connectors. This allows for flexible and reliable connections in a wide range of applications.
