5555001F - Dialight

Description: LED Circuit Board Indicator LED Circuit Board Indicator 4 Wide Red (x 4) Clear 1.6V 20mA Round with Domed Top 2.00mm Dia Through Hole , -55C to +100C

Download 5555001F Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 5555001F model

Email notifications will be applied after download.

Send part feedback

Symbol

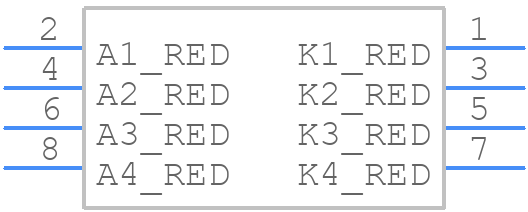

5555001F - Dialight - PCB symbol

PCB Footprints

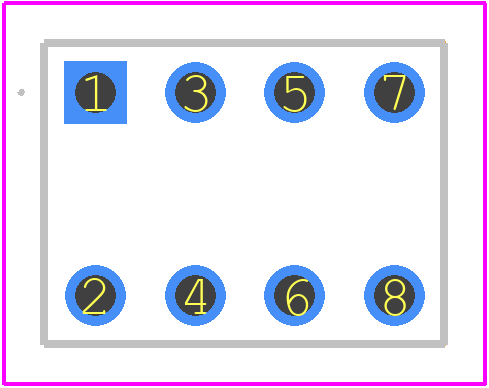

5555001F - Dialight PCB footprint - Other - Other - 5555001F-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5555001F
Part Number 5555001F
Manufacturer Dialight
Pin Count 8
Part Category LED (Multiple)
Package Category Other
Footprint Name Other - 5555001F-2
Released Date Sep 17, 2026
Last Modified Date Sep 16, 2026 5:26 AM UTC
Pinout / Pin List Click Here (Member Only)

5555001F Details

Manufacturer Part Number:
5555001F
Manufacturer:
Dialight

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

5555001F Overview

Use the download button to access the 5555001F schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 55550, or try a keyword search, such as Visible LEDs
