5566-14A - Molex

Description: MINI FIT JR VERTICAL HEADER ASSEMBLIES WITHOUT PEGS

Download 5566-14A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5566-14A - Molex - PCB symbol
click to zoom
PCB Footprints

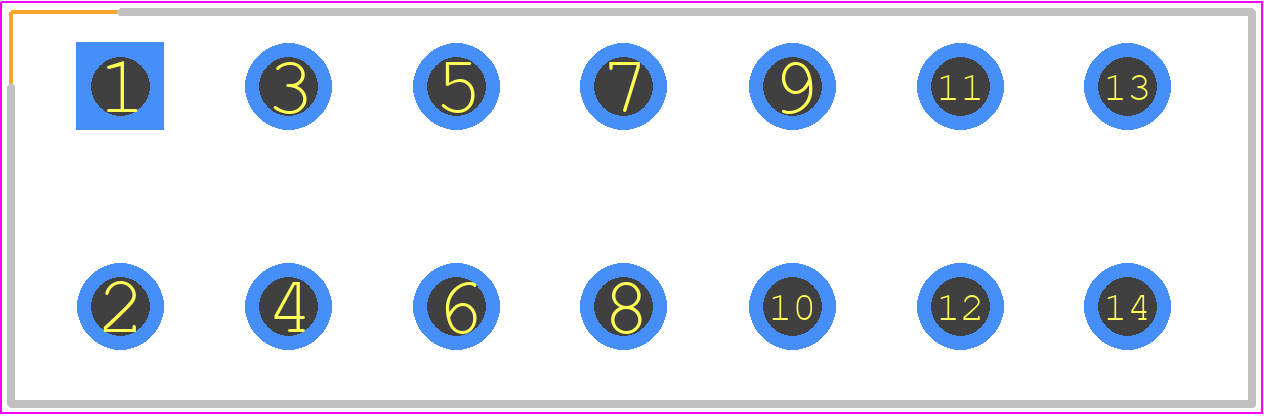

5566-14A - Molex PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 5566-14A
click to zoom
3D Models
5566-14A - Molex - 3D model - Header, Shrouded - Straight PTH Box - 5566-14A
click to zoom

5566-14A Details

  • Manufacturer Part Number:

    5566-14A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Additional Feature:

    RATED CURRENT(POWER): 9A

  • Body Breadth:

    0.44 inch

  • Body Depth:

    0.5 inch

  • Body Length:

    1.22 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-2

5566-14A Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5566-14A connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 5566-14A connector has a plastic housing and is not designed for outdoor or harsh environment applications. It's recommended to use connectors with a more robust design and materials, such as those with IP67 or higher ratings, for outdoor or harsh environment applications.
  • While the 5566-14A connector is designed for AWG 14-16 wires, it can accommodate smaller wire sizes with the use of wire adapters or terminals. However, using larger wire sizes may not be possible due to the connector's design and wire termination limitations.
  • The 5566-14A connector is part of the Molex Mini-Fit family of connectors, which are designed to be compatible with each other. However, it's essential to verify compatibility with specific connectors and applications to ensure proper mating and reliable connections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5566-14A Overview

Use the download button to access the 5566-14A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5566-, or try a keyword search

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
