5569-06A1-210 footprint, schematic symbol and 3D model by Molex

Symbol

click to zoom

PCB Footprints

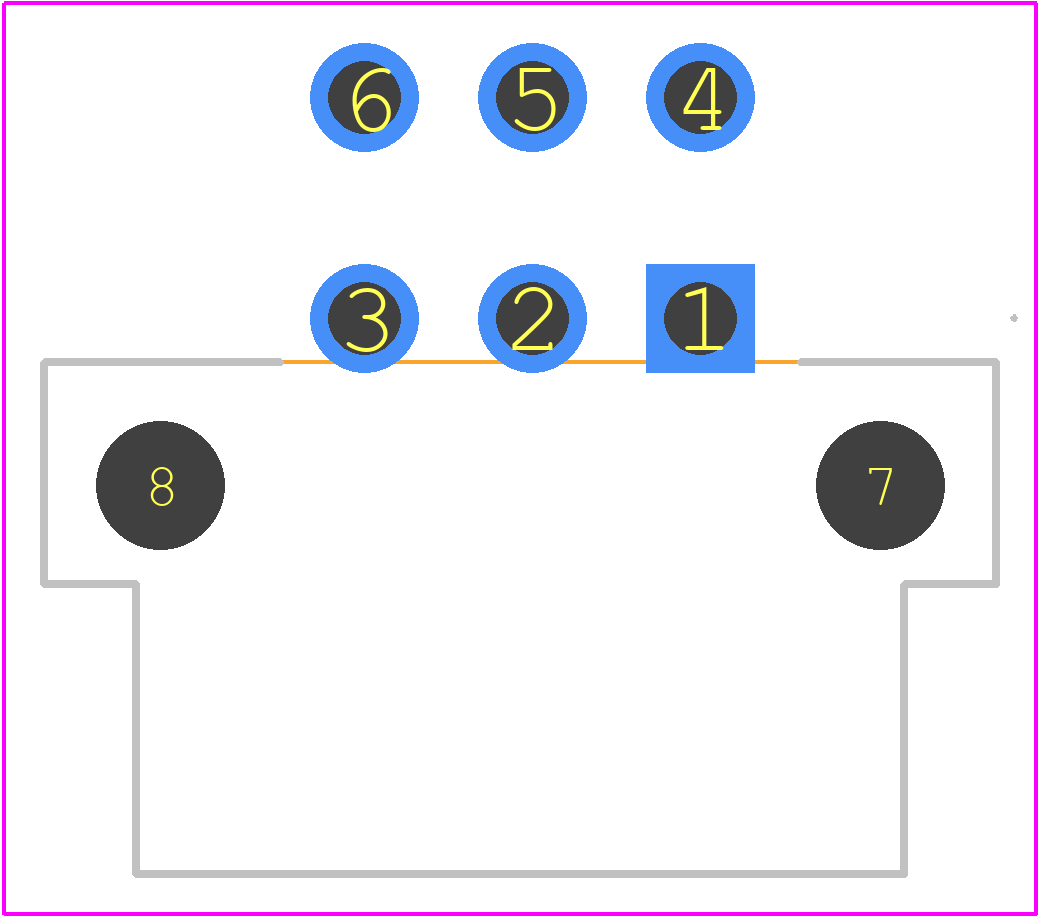

5569-06A1-210 - Molex PCB footprint - Other - Other - 5569-06A1-210-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5569-06A1-210
Part Number 5569-06A1-210
Manufacturer Molex
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - 5569-06A1-210-2
Released Date Dec 19, 2025
Last Modified Date Dec 19, 2025 10:25 AM UTC
Pinout / Pin List Click Here (Member Only)

5569-06A1-210 Details

Manufacturer Part Number:
5569-06A1-210
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Molex
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Matte Tin (Sn)
Contact Material:
NOT SPECIFIED
JESD-609 Code:
e3

Trust Checks

Community Provided

System Verified

Community Approved

5569-06A1-210 Overview

Use the download button to access the 5569-06A1-210 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 5569-, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
