5569-08A1 - Molex

Description: Mini-Fit Jr. Header, Dual Row, Right-Angle, with PCB Mounting Flange, 8 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating

Download 5569-08A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5569-08A1 - Molex - PCB symbol
click to zoom
PCB Footprints

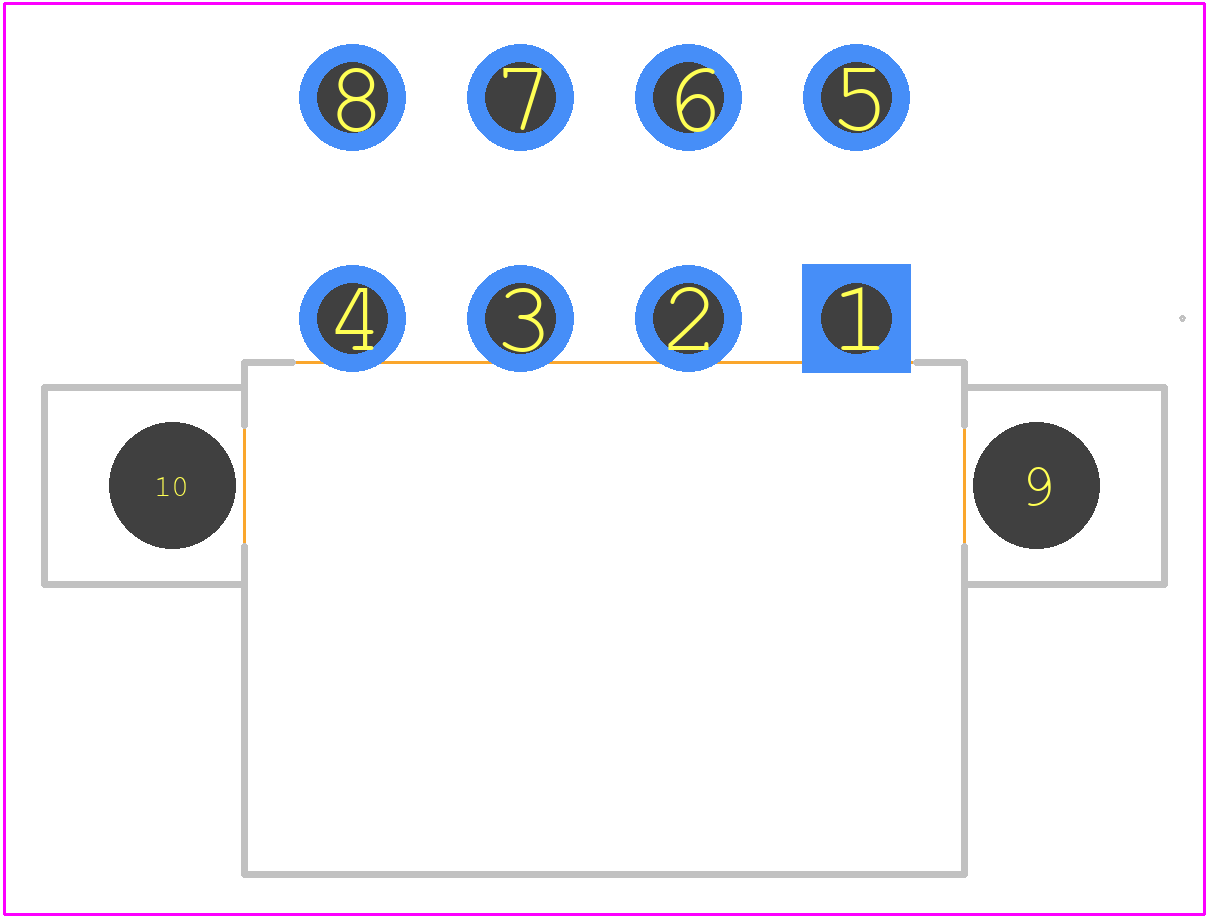

5569-08A1 - Molex PCB footprint - Other - Other - 5569-08A1-2
click to zoom
3D Models
5569-08A1 - Molex - 3D model - Other - 5569-08A1-2
click to zoom

5569-08A1 Details

  • Manufacturer Part Number:

    5569-08A1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 13A

  • Body Breadth:

    0.449 inch

  • Body Depth:

    0.791 inch

  • Body Length:

    1.102 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE66

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-2

5569-08A1 Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the keyway first, followed by the pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 5569-08A1 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and termination procedures to ensure reliable performance.
  • The maximum operating temperature for the 5569-08A1 connector is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • The 5569-08A1 connector is designed to meet IP67 standards, which means it can withstand exposure to water and dust. However, it's essential to follow proper sealing and protection procedures to ensure reliable performance in harsh environments.
  • The recommended torque value for the 5569-08A1 connector's screw terminals is 0.5-1.5 Nm (4-12 in-lbs). Over-torquing can damage the connector, while under-torquing may lead to poor connections.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5569-08A1 Overview

Use the download button to access the 5569-08A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5569-, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
