5569-12A1 - Molex

Description: Molex 5569, 4.2mm Pitch, 12 Way, 2 Row, Right Angle PCB Header, Through Hole

Download 5569-12A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5569-12A1 - Molex - PCB symbol
click to zoom
PCB Footprints

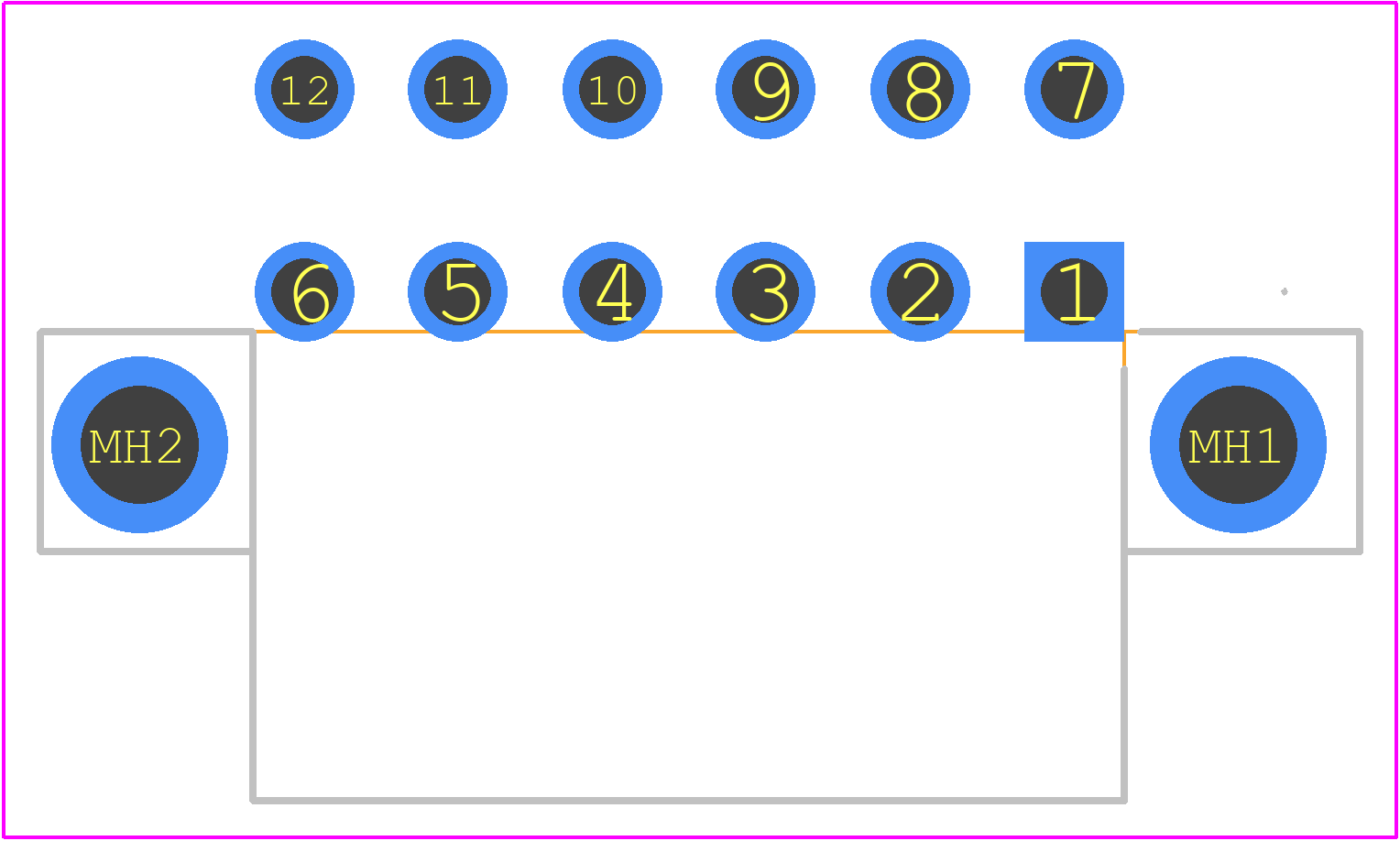

5569-12A1 - Molex PCB footprint - Other - Other - 5569-12A1-2
click to zoom

5569-12A1 Details

  • Manufacturer Part Number:

    5569-12A1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e3

5569-12A1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the 5569-12A1 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, transportation, and aerospace.
  • Yes, the 5569-12A1 connector is designed to operate in harsh environments, including temperatures ranging from -40°C to 105°C, and is resistant to moisture, dust, and chemicals.
  • The mating cycle life of the 5569-12A1 connector is rated for a minimum of 500 mating cycles.
  • Yes, the 5569-12A1 connector is designed for automated assembly processes, including pick-and-place machines and wire termination equipment.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5569-12A1 Overview

Use the download button to access the 5569-12A1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 5569-, or try a keyword search, such as Power Connectors
