5569-18A1 - Molex

Description: Mini-Fit Jr. Header, Dual Row, Right-Angle, with PCB Mounting Flange, 18 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating

Download 5569-18A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5569-18A1 - Molex - PCB symbol
click to zoom

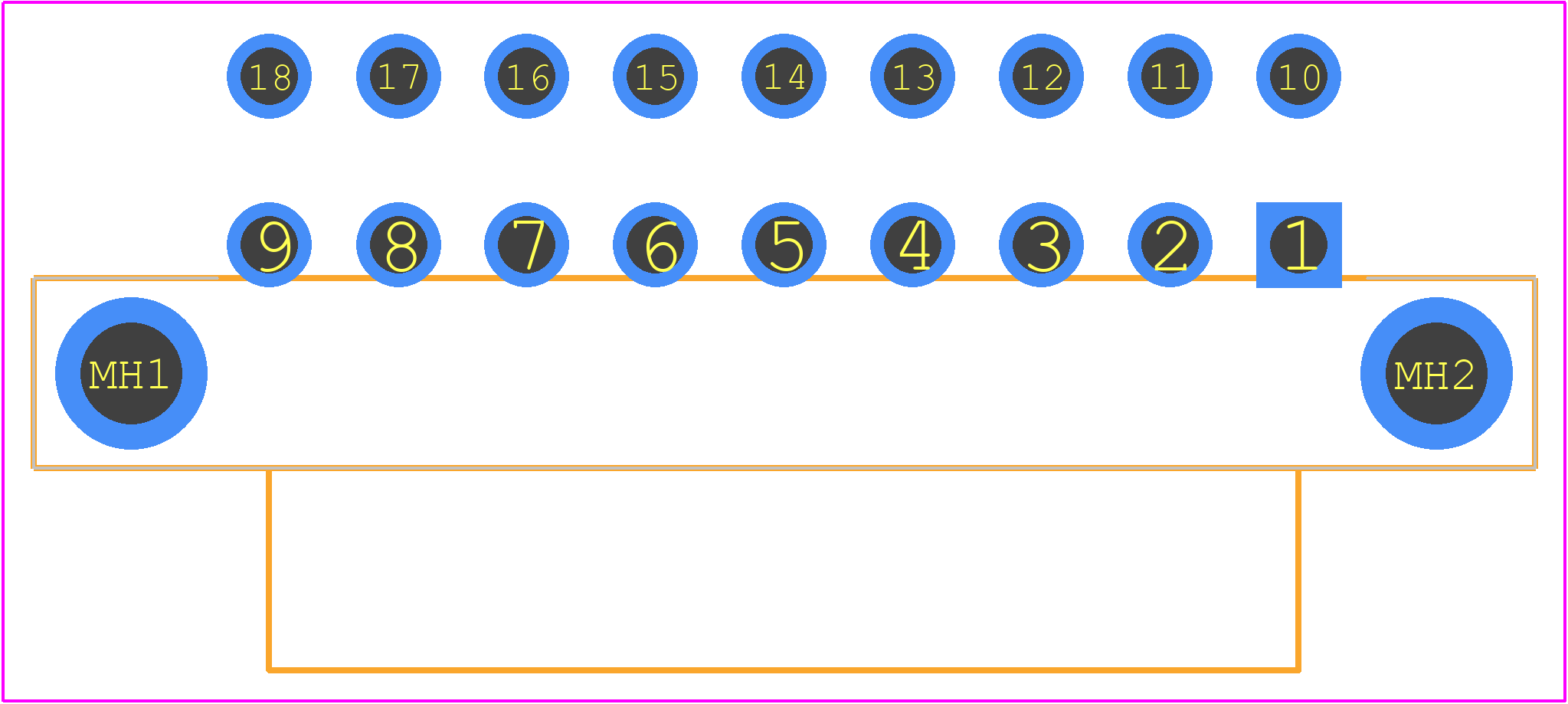

PCB Footprints
5569-18A1 - Molex PCB footprint - Other - Other - 5569-18A1-2
click to zoom

5569-18A1 Details

  • Manufacturer Part Number:

    5569-18A1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Molex

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e3

5569-18A1 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5-1.5 N·m (4.4-13.3 in·lb) for the screws on the 5569-18A1 connector, as specified in the Molex application note.
  • Yes, the 5569-18A1 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration applications, such as in automotive or industrial environments.
  • Yes, the 5569-18A1 connector is compatible with lead-free soldering processes, with a maximum soldering temperature of 260°C (500°F) for 10 seconds.
  • The operating temperature range for the 5569-18A1 connector is -40°C to 105°C (-40°F to 221°F), making it suitable for use in a wide range of applications.
  • The 5569-18A1 connector has a moisture-sealing rating of IP67, which means it can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's essential to follow proper sealing and installation procedures to ensure the connector's integrity in humid or wet environments.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5569-18A1 Overview

Use the download button to access the 5569-18A1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 5569-, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
