55935-1410 - Molex

Description: Molex MICROCLASP Series, Series Number 55935, 2mm Pitch 14 Way 1 Row Right Angle PCB Header, Solder Termination, 4A

Download 55935-1410 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
55935-1410 - Molex - PCB symbol
click to zoom
PCB Footprints

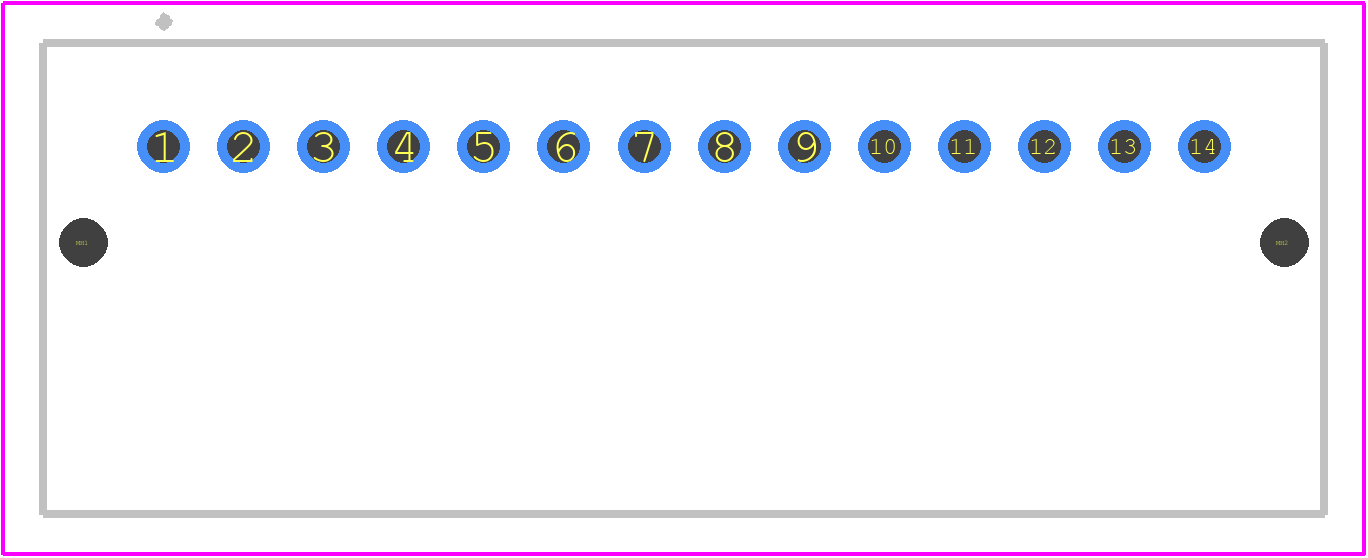

55935-1410 - Molex PCB footprint - Other - Other - 55935-1410-1
click to zoom
3D Models
55935-1410 - Molex - 3D model - Other - 55935-1410-1
click to zoom

55935-1410 Details

  • Manufacturer Part Number:

    55935-1410

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.264 inch

  • Body Depth:

    0.463 inch

  • Body Length:

    1.26 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    1400VAC V

  • Durability:

    30 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    WHITE

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Terminal Length:

    0.126 inch

  • Terminal Pitch:

    2.0066 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

55935-1410 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 55935-1410 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and securing of the connector to prevent damage or disconnection.
  • The 55935-1410 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environment applications, it's essential to ensure proper sealing and protection to prevent water ingress and corrosion.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 55935-1410 connector. However, it's crucial to ensure that the wire size and insulation meet the connector's specifications and that the connection is reliable and secure.
  • Yes, Molex provides guidelines for PCB layout and footprint design for the 55935-1410 connector. It's essential to follow these guidelines to ensure proper mating and unmating of the connector, as well as to prevent damage to the PCB or connector.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

55935-1410 Overview

Use the download button to access the 55935-1410 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 55935, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
