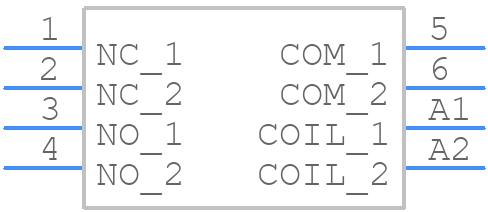

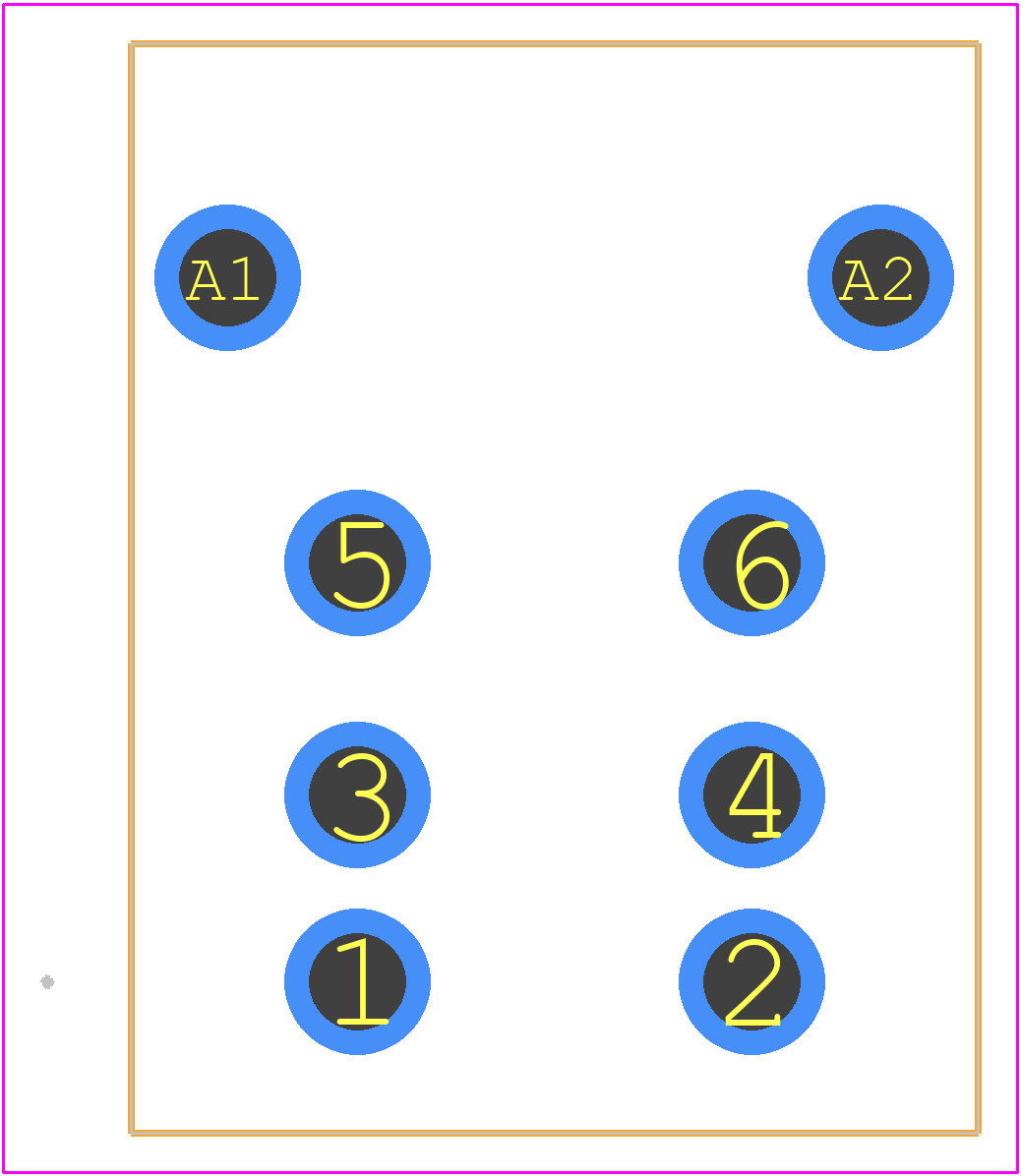

56.42.8.230.0000 footprint, schematic symbol and 3D model by FINDER

Symbol

PCB Footprints

3D Models

56.42.8.230.0000 Details

The maximum switching frequency of the relay is 20 Hz, as specified by FINDER SpA. However, it's recommended to limit the switching frequency to 10 Hz or less to ensure reliable operation and minimize wear on the relay contacts.
Yes, the 56.42.8.230.0000 relay module can be used with a 24V DC power supply. The relay module has a wide operating voltage range of 12-48V DC, making it compatible with 24V DC systems.
The minimum load current required for the relay to operate reliably is 10mA. If the load current is less than 10mA, the relay may not switch reliably or may not switch at all.
The 56.42.8.230.0000 relay module is designed to operate in a temperature range of -40°C to 85°C. However, it's recommended to derate the relay's performance at high temperatures (above 70°C) to ensure reliable operation.
The 56.42.8.230.0000 relay module has a surge withstand capability of 4kV (IEC 61000-4-5) and 2kV (IEC 61000-4-4). This means it can withstand voltage surges up to 4kV and 2kV, respectively, without damage or malfunction.
