- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 5622-6309-ML
- Part Number 5622-6309-ML
- Manufacturer 3M
- Pin Count 22
- Part Category Connector
- Package Category Other
- Footprint Name Other - 5622-6309-ML
- Released Date May 17, 2017
- Last Modified Date Jan 30, 2024 1:42 PM UTC
- Pinout / Pin List Click Here (Member Only)
5622-6309-ML Details
-
Manufacturer Part Number:
5622-6309-ML
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
3M Interconnect
-
YTEOL:
0
-
Additional Feature:
3M, POLARIZED
-
Body/Shell Style:
PLUG
5622-6309-ML Frequently Asked Questions (FAQs)
-
The recommended torque for the screw locks is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow the recommended torque to ensure proper mating and prevent damage to the connector.
-
Yes, the 5622-6309-ML connector is designed to withstand high-vibration environments. The connector's screw-lock design and rugged construction make it suitable for use in applications with high vibration, such as in industrial or transportation systems.
-
Yes, the 5622-6309-ML connector is designed to be compatible with other 3M Interconnect products, including cable assemblies and adapters. This allows for flexibility in designing and building complex systems.
-
The operating temperature range for the 5622-6309-ML connector is -40°C to 105°C (-40°F to 221°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and aerospace.
-
Yes, the 5622-6309-ML connector is designed to withstand harsh environments, including high humidity and exposure to certain chemicals. The connector's materials and construction provide a high level of resistance to corrosion and degradation.
Trust Checks
Expert Contribution
System Verified
Community Approved
5622-6309-ML Overview

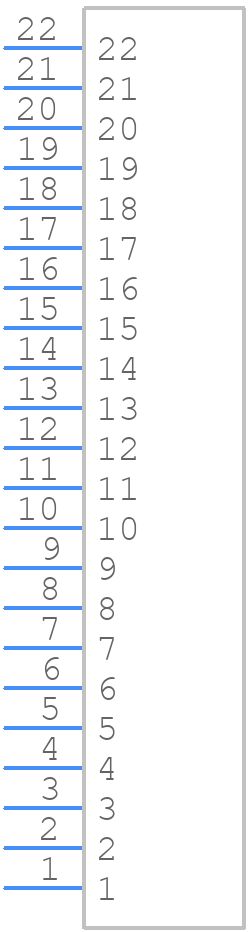

Use the download button to access the 5622-6309-ML schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5622-,
or try a keyword search, such as Telecom and Datacom Connectors
