564-0100-231F - Dialight

Description: LED Circuit Board Indicators CBI 3MM TRE LEVEL

Download 564-0100-231F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

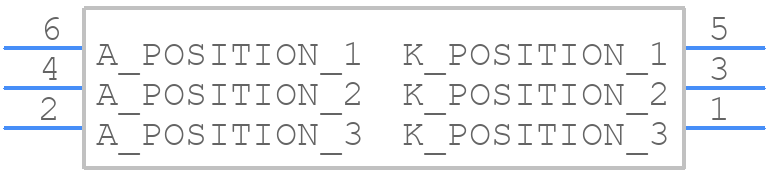

Symbol
564-0100-231F - Dialight - PCB symbol
click to zoom
PCB Footprints
564-0100-231F - Dialight PCB footprint - Other - Other - 564 Series
click to zoom
3D Models
564-0100-231F - Dialight - 3D model - Other - 564 Series
click to zoom

564-0100-231F Details

  • Manufacturer Part Number:

    564-0100-231F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Dialight

  • YTEOL:

    6

  • Color:

    RED/YELLOW/GREEN

  • Configuration:

    SEPARATE, 3 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • JESD-609 Code:

    e4

  • Lens Type:

    DIFFUSED

  • Luminous Intensity-Nom:

    10.0/12.6 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    3

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRIPLE COLOR LED ARRAY

  • Overall Height:

    15.24 mm

  • Packing Method:

    BAG

  • Peak Wavelength:

    635/585/565 nm

  • Shape:

    ROUND

  • Surface Mount:

    NO

  • Terminal Finish:

    Copper/Nickel/Silver (Cu/Ni/Ag)

  • Terminal Pitch:

    2.54 mm

  • Viewing Angle:

    60 deg

564-0100-231F Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 564-0100-231F is -40°C to 85°C.
  • Yes, the 564-0100-231F is suitable for outdoor use, but it's recommended to use a protective cover or enclosure to ensure IP67 rating.
  • The typical lifespan of the 564-0100-231F is 50,000 hours or more, depending on operating conditions and usage.
  • Yes, the 564-0100-231F is designed to withstand high-vibration environments, but it's recommended to follow proper mounting and installation procedures.
  • No, the 564-0100-231F is not designed for use with dimming circuits. It's recommended to use a constant voltage or current source for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

564-0100-231F Overview

Use the download button to access the 564-0100-231F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 564-0, or try a keyword search, such as Visible LEDs
