564-0100-321F footprint, schematic symbol and 3D model by Dialight

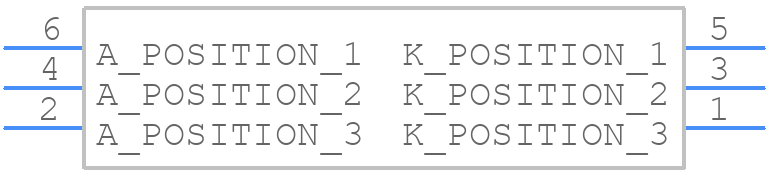

Symbol

PCB Footprints

3D Models

564-0100-321F Details

The recommended operating temperature range for the 564-0100-321F is -40°C to 85°C (-40°F to 185°F).
Yes, the 564-0100-321F is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
The typical lifespan of the 564-0100-321F LED indicator is 50,000 hours or more, depending on the operating conditions and usage.
Yes, the 564-0100-321F is designed to withstand high-vibration applications, with a vibration resistance of 10-2000 Hz, 10G peak acceleration.
Yes, the 564-0100-321F LED indicator is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in the European Union and other regions with similar regulations.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 564-0100-321F schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 564-0, or try a keyword search, such as Visible LEDs
