564-0300-132F - Dialight

Description: LED Circuit Board Indicators RED/YELLOW/GREEN

Download 564-0300-132F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

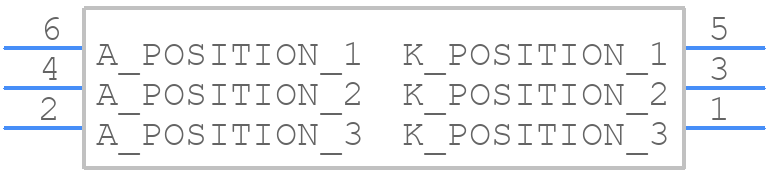

Symbol
564-0300-132F - Dialight - PCB symbol
click to zoom
PCB Footprints
564-0300-132F - Dialight PCB footprint - Other - Other - 564 Series
click to zoom
3D Models
564-0300-132F - Dialight - 3D model - Other - 564 Series
click to zoom

564-0300-132F Details

  • Manufacturer Part Number:

    564-0300-132F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Dialight

  • YTEOL:

    6

  • Color:

    RED/YELLOW/GREEN

  • Color@Wavelength:

    Green-Yellow/Red

  • Configuration:

    SEPARATE, 3 ELEMENTS WITH BUILT-IN RESISTOR

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    5 V

  • JESD-609 Code:

    e4

  • Lens Type:

    DIFFUSED

  • Luminous Intensity-Min:

    0.008 cd

  • Luminous Intensity-Nom:

    29.0/12.6/19.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    3

  • Number of LEDs in Array:

    3

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIPLE COLOR LED ARRAY

  • Overall Height:

    15.24 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    635/585/565 nm

  • Shape:

    ROUND

  • Size:

    3 mm

  • Surface Mount:

    NO

  • T-code:

    T-1

  • Terminal Finish:

    Copper/Nickel/Silver (Cu/Ni/Ag)

  • Terminal Pitch:

    2.54 mm

  • Viewing Angle:

    60 deg

564-0300-132F Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 564-0300-132F is -40°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
  • Yes, the 564-0300-132F is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • The typical lifespan of the 564-0300-132F is 50,000 hours, although this can vary depending on operating conditions and environmental factors.
  • Yes, the 564-0300-132F is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the 564-0300-132F is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in the European Union and other regions with similar regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

564-0300-132F Overview

Use the download button to access the 564-0300-132F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 564-0, or try a keyword search, such as Visible LEDs
