5645169-2 - TE Connectivity

5645169-2 Details

• Manufacturer Part Number:

  5645169-2

• Brand Name:

  AMP

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  8 Weeks, 5 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  8

• Additional Feature:

  TERMINAL PITCH FOR POWER CONTACTS IS 2.54 MM

• Body Breadth:

  0.368 inch

• Body Depth:

  0.61 inch

• Body Length:

  5.46 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  CARD EDGE CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  10 mΩ

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• Durability:

  250 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  2.78 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYESTER

• MIL Conformance:

  NO

• Mains Connector Rating:

  3A

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.241 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

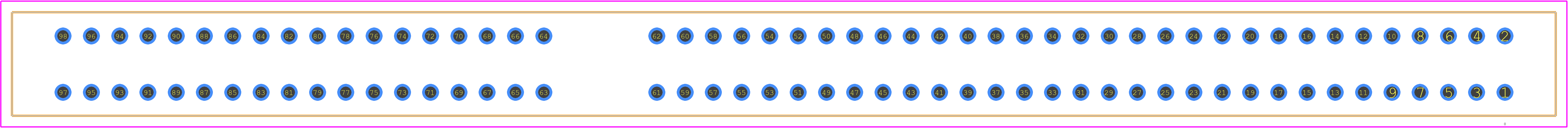

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  5.08 mm

• Panel Mount:

  NO

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED

• Rated Current (Signal):

  3 A

• Rated Voltage:

  400 V

• Reference Standard:

  UL

• Terminal Length:

  0.125 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  97

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  .1668 N
