Part Image

5645169-3 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Power Positions 98 | Number of Signal Positions 0 | Number of Dual Positions 49 | Number of Positions 98 | Number of Sections 2 | PCB Mount Orientation Vertical | Keying & Polarized Position Locations 0 | Contact Features: Contact Underplating Material Nickel | Contact Base Material Phosphor Bronze | Contact Mating Area Plating Material Thickness 30 MICIN | Contact Type Socket | Contact Mating Area Plating Material Gold | PCB Con

Download 5645169-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

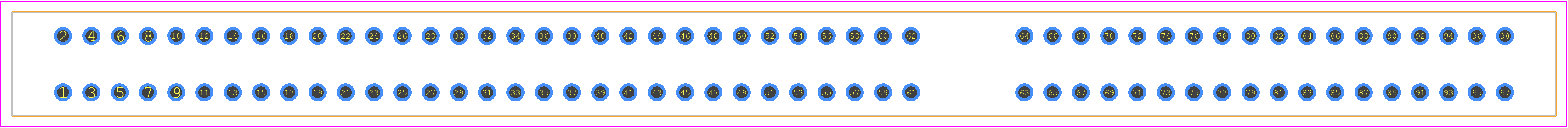

5645169-3 - TE Connectivity PCB footprint - Other - Other - 5645169-3-2
click to zoom
3D Models
5645169-3 - TE Connectivity  - 3D model - Other - 5645169-3-2
click to zoom

5645169-3 Details

  • Manufacturer Part Number:

    5645169-3

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.25

  • Additional Feature:

    TERMINAL PITCH FOR POWER CONTACTS IS 2.54 MM

  • Body Depth:

    0.61 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mating Contact Row Spacing:

    0.241 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    3 A

  • Rated Voltage:

    400 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    97

  • UL Flammability Code:

    94V-0
