5680704444F - Dialight

Description: LED Circuit Board Indicator LED Circuit Board Indicator 4 High Green, Yellow (x 4) Diffused 2.1V 30mA Green, 20mA Yellow Round with Domed Top 3mm, T-1 Through Hole, Right Angle

Download 5680704444F Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 5680704444F model

Email notifications will be applied after download.

Send part feedback

Symbol

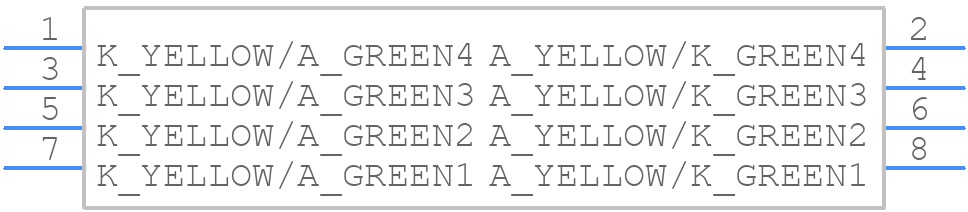

5680704444F - Dialight - PCB symbol

PCB Footprints

5680704444F - Dialight PCB footprint - Other - Other - 5680704444F-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5680704444F
Part Number 5680704444F
Manufacturer Dialight
Pin Count 8
Part Category LED (Multiple)
Package Category Other
Footprint Name Other - 5680704444F-3
Released Date Nov 19, 2025
Last Modified Date Dec 4, 2025 11:28 AM UTC
Pinout / Pin List Click Here (Member Only)
