5690101372F - Dialight

Description: LED Circuit Board Indicator LED Circuit Board Indicator 2 High x 2 Wide Green (x 1), Orange (x 1), Red (x 1), Yellow (x 1) 2.1V Green, 2.2V Orange, 2V Red, 2.1V Yellow Round with Domed Top 3mm, T-1 Through Hole, Right Angle, -30 °C to +100 °C

Download 5690101372F Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 5690101372F model

Email notifications will be applied after download.

Send part feedback

Symbol

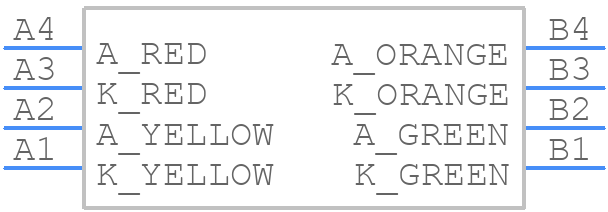

5690101372F - Dialight - PCB symbol

PCB Footprints

5690101372F - Dialight PCB footprint - Other - Other - 5690101372F-2

3D Models

5690101372F - Dialight - 3D model - Other - 5690101372F-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5690101372F
Part Number 5690101372F
Manufacturer Dialight
Pin Count 8
Part Category LED (Multiple)
Package Category Other
Footprint Name Other - 5690101372F-2
Released Date Apr 25, 2026
Last Modified Date Apr 27, 2026 9:04 AM UTC
Pinout / Pin List Click Here (Member Only)

5690101372F Details

Manufacturer Part Number:
5690101372F
Manufacturer:
Dialight

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

5690101372F Overview

Use the download button to access the 5690101372F schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 56901, or try a keyword search, such as Visible LEDs
