56DP30-01-1-AJN - Grayhill

Description: GRAYHILL - 56DP30-01-1-AJN - SWITCH, ROTARY, SP12T, 200mA, 115V

Download 56DP30-01-1-AJN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

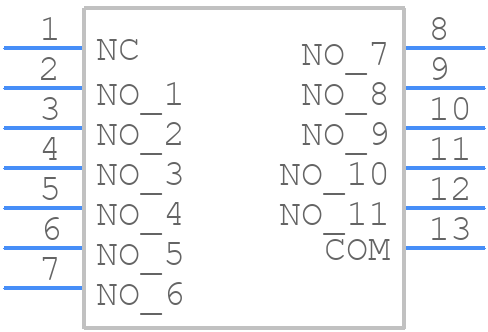

56DP30-01-1-AJN - Grayhill - PCB symbol
click to zoom
PCB Footprints

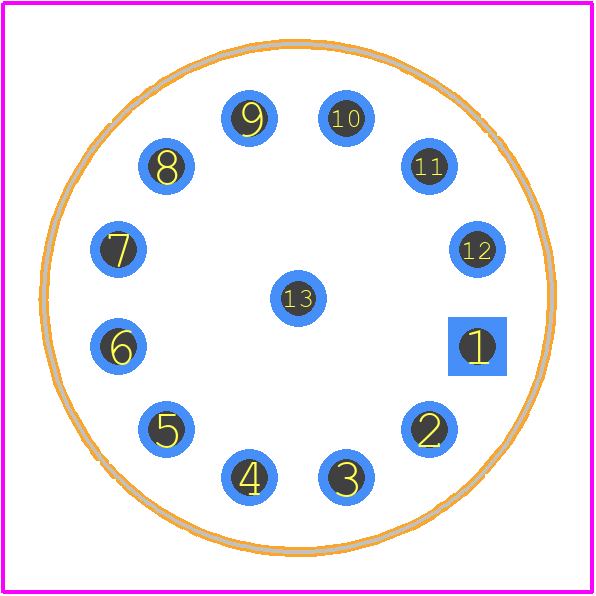

56DP30-01-1-AJN - Grayhill PCB footprint - Other - Other - 56SDP30-01PAJS-7
click to zoom
3D Models
56DP30-01-1-AJN - Grayhill - 3D model - Other - 56SDP30-01PAJS-7
click to zoom

56DP30-01-1-AJN Details

  • Manufacturer Part Number:

    56DP30-01-1-AJN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.20

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    7

  • Actuator Type:

    ADJUSTABLE STOP TYPE

  • Additional Feature:

    PANEL MOUNTABLE

  • Body Height:

    9.58 mm

  • Body Length or Diameter:

    12.7 mm

  • Contact (AC) Max Rating R Load:

    .2A@115VAC

  • Contact Current(AC)-Max:

    0.2 A

  • Contact Current(DC)-Max:

    0.2 A

  • Contact (DC) Max Rating R Load:

    .2A@30VDC

  • Contact Voltage(AC)-Max:

    115 V

  • Contact Voltage(DC)-Max:

    30 V

  • Indexing Angle:

    30 deg

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Positions:

    12

  • Number of Switch Sections:

    1

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SP12T

  • Switch Type:

    ROTARY SWITCH

  • Terminal Finish:

    GOLD OVER NICKEL

  • Termination Type:

    SOLDER

56DP30-01-1-AJN Frequently Asked Questions (FAQs)

  • The recommended torque for assembling the 56DP30-01-1-AJN switch is 5-7 in-lbs (0.56-0.79 Nm).
  • Yes, the 56DP30-01-1-AJN switch is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
  • The 56DP30-01-1-AJN switch is designed to operate in temperatures ranging from -20°C to 85°C (-4°F to 185°F) and humidity up to 95% RH. However, it's recommended to consult with Grayhill Inc for specific environmental requirements.
  • The 56DP30-01-1-AJN switch is designed for a minimum of 10,000 cycles, but the actual lifespan may vary depending on usage, environment, and maintenance.
  • Yes, Grayhill Inc offers customization options for the 56DP30-01-1-AJN switch, including different shaft and bushing configurations. Contact Grayhill Inc for more information.
