The recommended torque for assembling the 56SP30-01-2-06N switch is 0.5-1.5 in-lbs (0.056-0.169 Nm). It's essential to follow this torque specification to ensure proper assembly and prevent damage to the switch.
Yes, the 56SP30-01-2-06N switch is designed to withstand vibration and can operate in environments with vibrations up to 10 G's (10 times the force of gravity). However, it's recommended to consult with Grayhill Inc or a qualified engineer to ensure the switch meets the specific vibration requirements of your application.
The 56SP30-01-2-06N switch is rated for operation in temperatures ranging from -20°C to 85°C (-4°F to 185°F) and humidity up to 95% RH. However, it's recommended to consult with Grayhill Inc or a qualified engineer to ensure the switch meets the specific environmental requirements of your application.
Yes, Grayhill Inc offers customization options for the 56SP30-01-2-06N switch, including different shaft and bushing materials. Contact Grayhill Inc directly to discuss your specific requirements and determine the feasibility of customization.
The expected lifespan of the 56SP30-01-2-06N switch is typically in the range of 10,000 to 50,000 cycles, depending on the application, environment, and usage. However, this can vary depending on specific factors, and it's recommended to consult with Grayhill Inc or a qualified engineer to determine the expected lifespan for your specific use case.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
56SP30-01-2-06N Overview

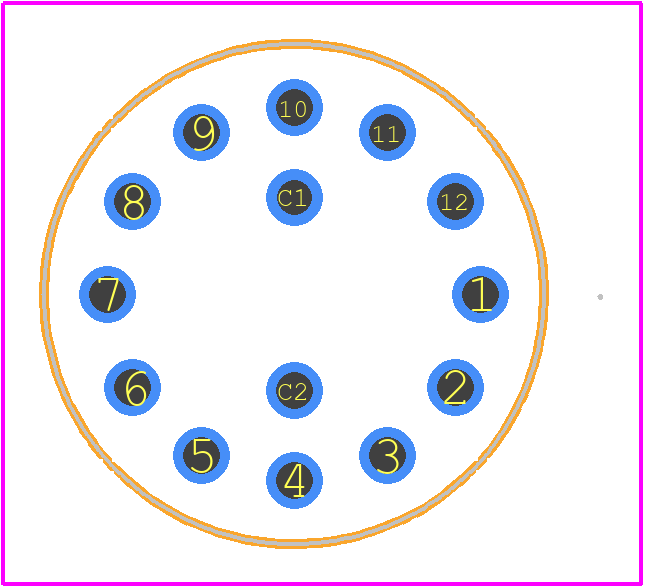

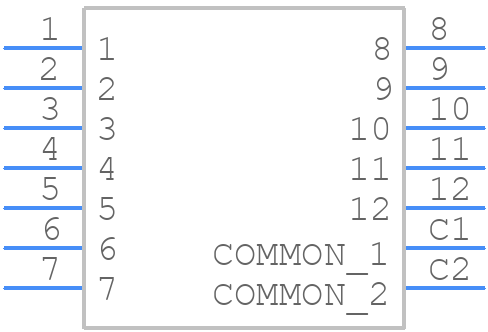

Use the download button to access the 56SP30-01-2-06N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 56SP3,
or try a keyword search, such as Rotary Switches
