56SP30-01-4-02S - Grayhill

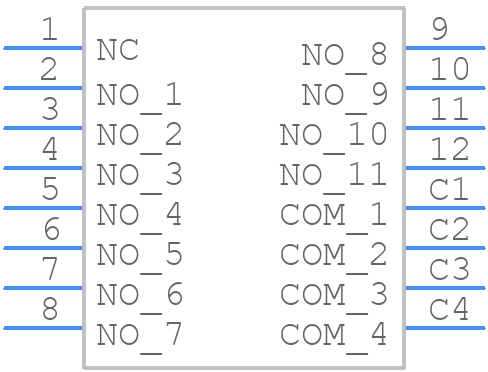

56SP30-01-4-02S Details

• Manufacturer Part Number:

  56SP30-01-4-02S

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.20

• Manufacturer:

  Grayhill Inc

• YTEOL:

  8

• Actuator Length:

  0.375 inch

• Actuator Material:

  ZINC DIE CAST

• Actuator Type:

  SHAFT TYPE

• Additional Feature:

  PANEL MOUNTABLE

• Body Height:

  9.58 mm

• Body Length or Diameter:

  12.7 mm

• Bushing Diameter:

  0.25 inch

• Bushing Length:

  0.25 inch

• Bushing Type:

  1/4-28

• Center Contact Material:

  BRASS

• Center Contact Plating:

  SILVER OVER NICKEL

• Contact (AC) Max Rating R Load:

  .2A@115VAC

• Contact Current(AC)-Max:

  0.2 A

• Contact Current(DC)-Max:

  0.2 A

• Contact (DC) Max Rating R Load:

  .2A@30VDC

• Contact Resistance:

  0.1 mΩ

• Contact Voltage(AC)-Max:

  115 V

• Contact Voltage(DC)-Max:

  30 V

• Dielectric Withstand Volts:

  600VAC V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  BRASS

• End Contact Plating:

  GOLD

• Housing Material:

  ZINC DIE CAST

• Indexing Angle:

  30 deg

• Insulation Resistance:

  10000000000 Ω

• Insulator Material:

  THERMOSET 94V-0

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Positions:

  2

• Number of Switch Sections:

  1

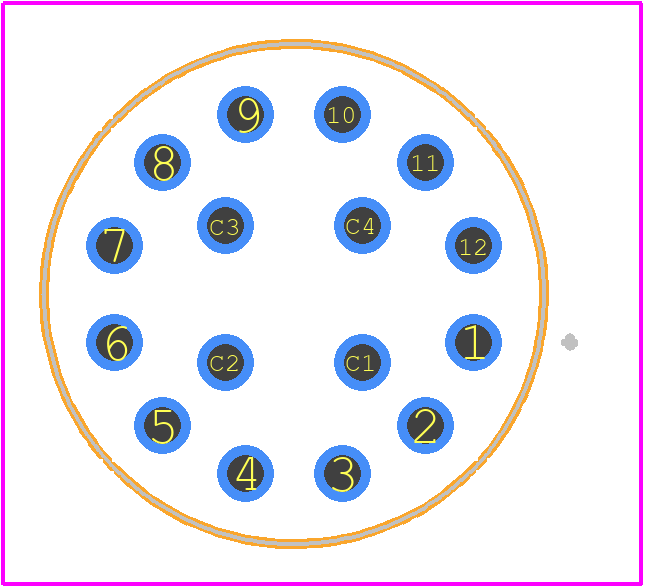

• PCB Hole Count:

  12

• Sealing:

  SHAFT AND PANEL SEALED

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  4PDT

• Switch Type:

  ROTARY SWITCH

• Terminal Finish:

  GOLD OVER NICKEL

• Terminal Length:

  0.11 inch

• Terminal Material:

  BRASS

• Termination Type:

  SOLDER
