5700100222F - Dialight

Description: LED Circuit Board Indicator LED Circuit Board Indicator 3 High Green (x 3) Diffused, Tinted 2.1V 20mA Through Hole, Right Angle 10 mA Int / 20 mA Voltage -40°C to +85°C (-40°F to +185°F)

Download 5700100222F Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 5700100222F model

Email notifications will be applied after download.

Send part feedback

Symbol

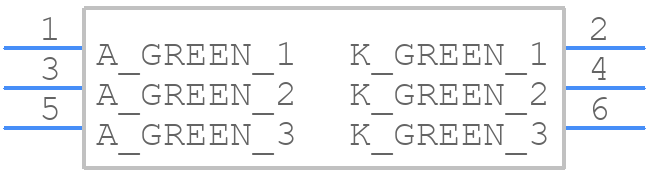

5700100222F - Dialight - PCB symbol

PCB Footprints

5700100222F - Dialight PCB footprint - Other - Other - 5700100222F-2

3D Models

5700100222F - Dialight - 3D model - Other - 5700100222F-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5700100222F
Part Number 5700100222F
Manufacturer Dialight
Pin Count 6
Part Category LED (Multiple)
Package Category Other
Footprint Name Other - 5700100222F-2
Released Date Jun 10, 2025
Last Modified Date Jun 10, 2025 11:10 AM UTC
Pinout / Pin List Click Here (Member Only)

5700100222F Details

Manufacturer Part Number:
5700100222F
Manufacturer:
Dialight

Trust Checks

Community Provided

System Verified

Community Approved

5700100222F Overview

Use the download button to access the 5700100222F schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 57001, or try a keyword search, such as Visible LEDs
