571-0112F - Dialight

Description: LED Low-Power Bi-Level Bi-Color Green/Red 565nm/635nm 2.1V/2V 4-Pin Bulk

Download 571-0112F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

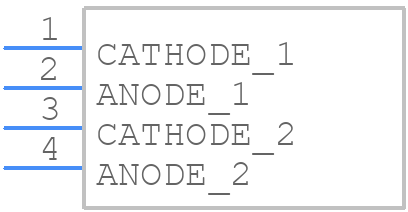

571-0112F - Dialight - PCB symbol
click to zoom
PCB Footprints
571-0112F - Dialight PCB footprint - Other - Other - 571-0112F-3
click to zoom
3D Models
571-0112F - Dialight - 3D model - Other - 571-0112F-3
click to zoom

571-0112F Details

  • Manufacturer Part Number:

    571-0112F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-4

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Dialight

  • YTEOL:

    6.25

  • Color:

    RED/GREEN

  • Color@Wavelength:

    Green+Orange-Red

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • JESD-609 Code:

    e2

  • Lens Type:

    DIFFUSED

  • Luminous Intensity-Nom:

    15.0/10.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    2

  • Number of LEDs in Array:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DUAL COLOR LED ARRAY

  • Overall Height:

    8.6 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    627/565 nm

  • Shape:

    ROUND

  • Size:

    2 mm

  • Surface Mount:

    NO

  • T-code:

    T-3/4

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Pitch:

    2.5 mm

  • Viewing Angle:

    70 deg
