571-0132-100F - Dialight

Description: LED Circuit Board Indicators Yellow/Green Diffused

Download 571-0132-100F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

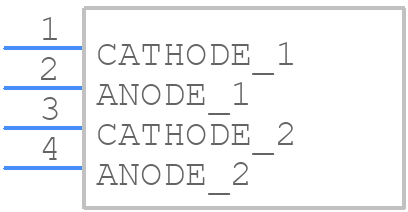

Symbol
571-0132-100F - Dialight - PCB symbol
click to zoom
PCB Footprints
571-0132-100F - Dialight PCB footprint - Other - Other - 571-0132-100F-2
click to zoom

571-0132-100F Details

  • Manufacturer Part Number:

    571-0132-100F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Dialight

  • YTEOL:

    6.25

  • Color:

    YELLOW/GREEN

  • Color@Wavelength:

    Green/Yellow

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • JESD-609 Code:

    e2

  • Lens Type:

    DIFFUSED

  • Luminous Intensity-Nom:

    12.6/8.7 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    2

  • Number of LEDs in Array:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    DUAL COLOR LED ARRAY

  • Overall Height:

    8.6 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    585/565 nm

  • Shape:

    ROUND

  • Size:

    2 mm

  • Surface Mount:

    NO

  • T-code:

    T-3/4

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Pitch:

    2.54 mm

  • Viewing Angle:

    38 deg

571-0132-100F Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 571-0132-100F is -40°C to 85°C (-40°F to 185°F).
  • Yes, the 571-0132-100F is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • The typical lifespan of the 571-0132-100F LED indicator is 50,000 hours or more, depending on the operating conditions and usage.
  • Yes, the 571-0132-100F is designed to withstand high-vibration applications, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the 571-0132-100F LED indicator is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in the European Union and other regions with similar regulations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

571-0132-100F Overview

Use the download button to access the 571-0132-100F schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 571-0, or try a keyword search, such as Visible LEDs
