5725-RC - Bourns

Description: Bourns 8 mH ±15% Leaded Inductor, Max SRF:1kHz, 1A Idc, 3.34Ω Rdc 5700

Download 5725-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

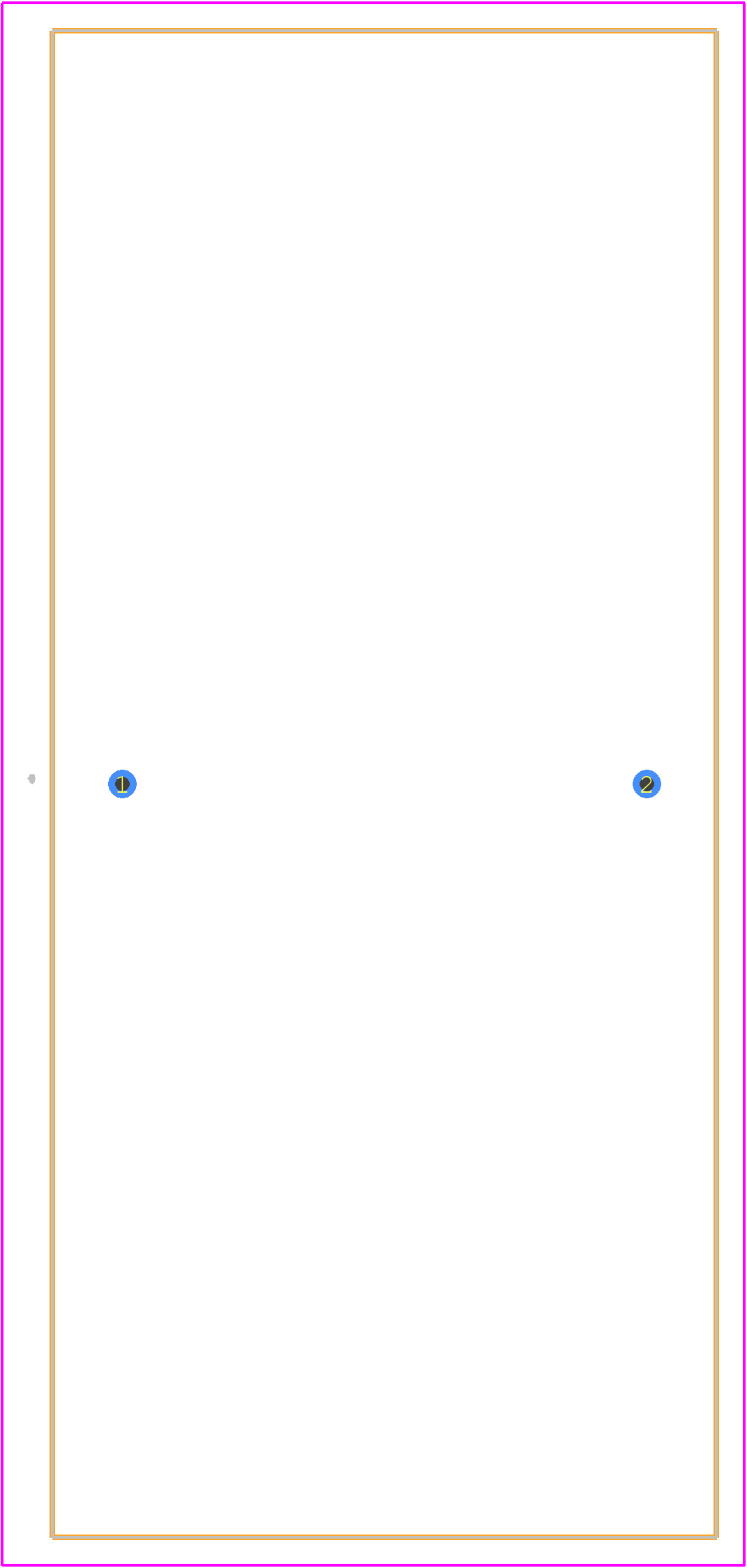

PCB Footprints
5725-RC - Bourns PCB footprint - Other - Other - 5725-RC-1
click to zoom
3D Models
5725-RC - Bourns  - 3D model - Other - 5725-RC-1
click to zoom

5725-RC Details

  • Manufacturer Part Number:

    5725-RC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    Tunisia

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6

  • Construction:

    Vertical Mount

  • DC Resistance:

    3.34 Ω

  • Inductance-Nom (L):

    8000 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    0.3048 mm

  • Lead Length:

    12.7 mm

  • Lead Spacing:

    18.796 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    23.7998 mm

  • Package Length:

    53.975 mm

  • Package Style:

    Toroidal

  • Rated Current-Max:

    1 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    15%

5725-RC Frequently Asked Questions (FAQs)

  • Bourns recommends a symmetrical PCB layout with a ground plane underneath the device to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 2 oz copper thickness is recommended for the PCB.
  • Bourns recommends using a soldering iron with a temperature range of 250°C to 260°C and a solder with a melting point of 180°C to 190°C. The device should be soldered within 3 seconds to 5 seconds to prevent thermal damage.
  • Although the datasheet specifies an operating temperature range of -40°C to 85°C, Bourns recommends derating the device's performance at temperatures above 70°C to ensure reliable operation.
  • Yes, the 5725-RC is designed to withstand vibrations up to 10 G peak acceleration. However, it's recommended to secure the device to the PCB using a suitable adhesive or mechanical fastening to prevent movement during vibration.
  • Bourns recommends checking the device's pinout and soldering quality, ensuring proper power supply and signal connections, and verifying the device's operating temperature and environmental conditions. If issues persist, contact Bourns' technical support for further assistance.
