574MILFT - Renesas Electronics

Description: The 574 is a low jitter, low-skew, high performance PLL-based zero delay buffer for high speed applications. Based on IDT's proprietary low jitter Phase Locked Loop (PLL) techniques, the device provides four low skew outputs at speeds up to 160 MHz at 3.3 V. When one of the outputs is connected directly to FBIN, the rising edge of each output is aligned with the rising edge of the input clock. External delay elements connected in the feedback loops will cause the outputs to occur before the inputs by the am

Download 574MILFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

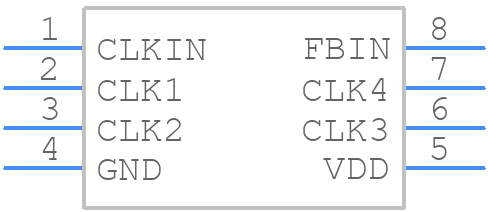

574MILFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
574MILFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - (8-pin SOIC, 150 Mil. Narrow Body)
click to zoom
3D Models
574MILFT - Renesas Electronics - 3D model - Small Outline Packages - (8-pin SOIC, 150 Mil. Narrow Body)
click to zoom

574MILFT Details

  • Manufacturer Part Number:

    574MILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    574

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.018 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.15 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • fmax-Min:

    160 MHz

574MILFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide for the 574MILFT, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a fuse or a current sense resistor, to detect and respond to overcurrent conditions. The datasheet provides guidelines for selecting the appropriate protection components.
  • Renesas recommends a specific power-up sequence to ensure proper device operation. The sequence involves applying power to the VCC pin first, followed by the VDD pin, and then the input signals. The datasheet provides a detailed description of the recommended power-up sequence.
  • Renesas recommends implementing ESD protection measures, such as using ESD protection diodes or TVS diodes, to protect the device from electrostatic discharge. The datasheet provides guidelines for selecting the appropriate ESD protection components.
  • The recommended operating temperature range for the 574MILFT is -40°C to 125°C. However, Renesas recommends derating the device's performance at temperatures above 85°C to ensure reliable operation.
