574MLFT - Renesas Electronics

Description: The 574 is a low jitter, low-skew, high performance PLL-based zero delay buffer for high speed applications. Based on IDT's proprietary low jitter Phase Locked Loop (PLL) techniques, the device provides four low skew outputs at speeds up to 160 MHz at 3.3 V. When one of the outputs is connected directly to FBIN, the rising edge of each output is aligned with the rising edge of the input clock. External delay elements connected in the feedback loops will cause the outputs to occur before the inputs by the am

Download 574MLFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

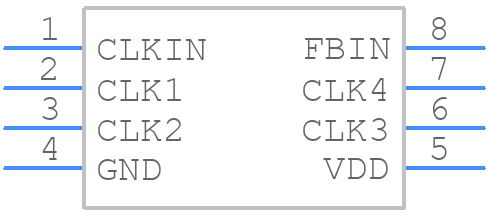

574MLFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
574MLFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - (8-pin SOIC, 150 Mil. Narrow Body)
click to zoom
3D Models
574MLFT - Renesas Electronics - 3D model - Small Outline Packages - (8-pin SOIC, 150 Mil. Narrow Body)
click to zoom

574MLFT Details

  • Manufacturer Part Number:

    574MLFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    574

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.018 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.15 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • fmax-Min:

    160 MHz

574MLFT Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 574MLFT is -40°C to 125°C.
  • The POR circuitry in the 574MLFT is designed to reset the device during power-up. To handle it, ensure that the power supply voltage rises monotonically and reaches the minimum operating voltage (VDD) within the specified time (typically 10ms).
  • The internal voltage regulator in the 574MLFT generates a stable internal voltage (VINT) from the external power supply voltage (VDD), which is used to power the internal circuitry.
  • The 574MLFT can use an external clock source or an internal clock source. To configure the clock source, set the clock select bits (CKS) in the system clock control register (SYSCR) accordingly.
  • The maximum frequency of the 574MLFT is 20 MHz, but it can be overclocked up to 24 MHz with reduced voltage and temperature ranges.
