5767081-1 - TE Connectivity

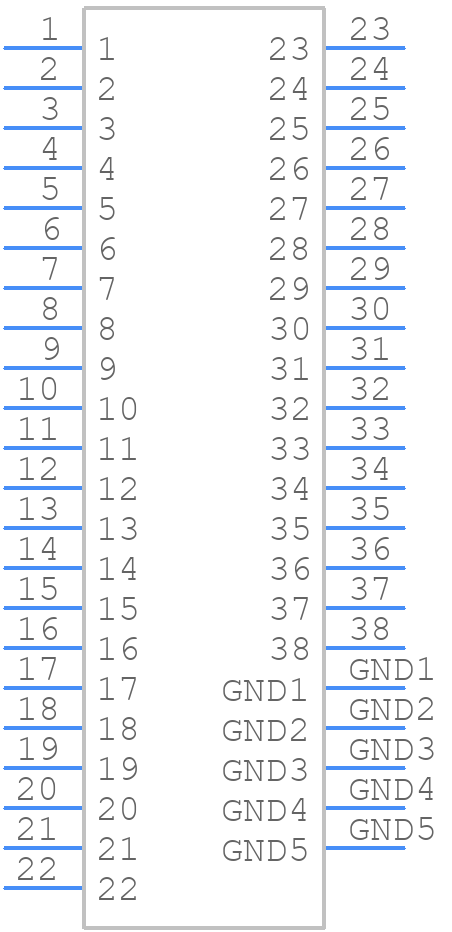

5767081-1 Details

• Manufacturer Part Number:

  5767081-1

• Brand Name:

  AMP

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  6 Weeks

• Manufacturer:

  TE Connectivity

• YTEOL:

  7.75

• Additional Feature:

  ROHS COMPLIANT

• Board Mounting Option:

  LOCATING POST

• Body Breadth:

  0.272 inch

• Body Depth:

  0.236 inch

• Body Length:

  1 inch

• Body/Shell Style:

  RECEPTACLE

• Characteristic Impedance:

  38 Ω

• Connector Type:

  BOARD STACKING CONNECTOR

• Contact Arrangement:

  S38P1

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  10 mΩ

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  500VAC V

• Durability:

  500 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  2000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• MIL Conformance:

  NO

• Mains Connector Rating:

  11.5A

• Mating Contact Pitch:

  0.025 inch

• Mixed Contacts:

  YES

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  7.0866 mm

• Panel Mount:

  NO

• Plating Thickness:

  29.9212u inch

• Polarization Key:

  POLARIZED

• Rated Current (Signal):

  11.5 A

• Rated Voltage:

  1 V

• Reference Standard:

  CSA, UL

• Terminal Pitch:

  0.64 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  39

• UL Flammability Code:

  94V-0
