5787246-1 - TE Connectivity

Description: Power to the Board HDR ASY RA LKEY STR TAIL 10.8V

Download 5787246-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

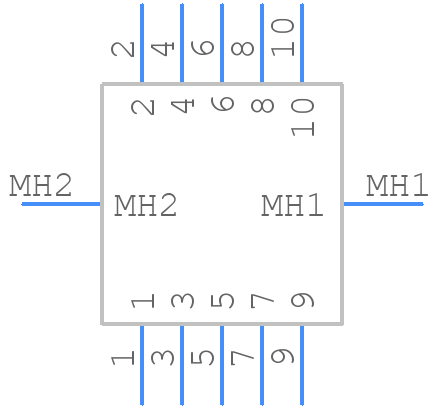

5787246-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

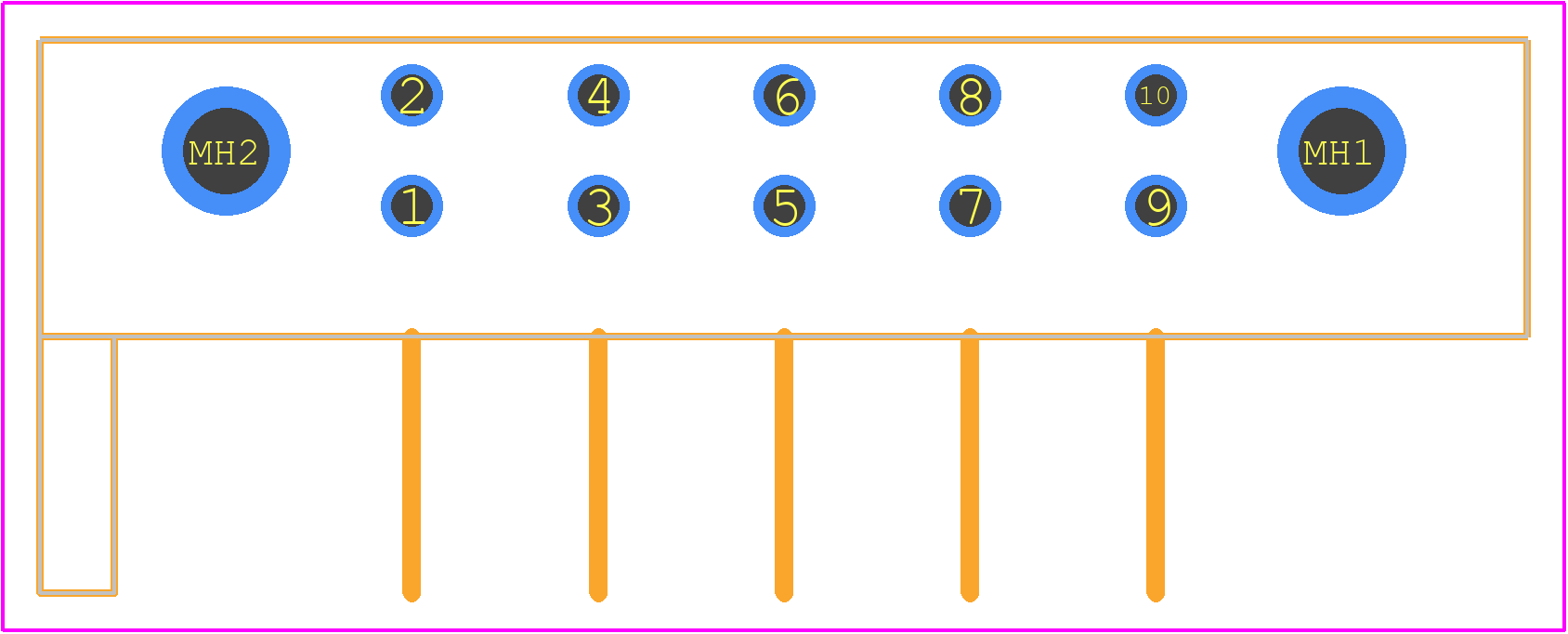

5787246-1 - TE Connectivity PCB footprint - Other - Other - 5787246-1-1
click to zoom
3D Models
5787246-1 - TE Connectivity - 3D model - Other - 5787246-1-1
click to zoom

5787246-1 Details

  • Manufacturer Part Number:

    5787246-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • Body/Shell Style:

    PLUG

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    7A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    100u inch

  • Rated Current (Signal):

    7 A

  • Rated Voltage:

    10.8 V

  • Terminal Pitch:

    5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

5787246-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the 5787246-1 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks, and 0.2-0.5 Nm (1.7-4.4 in-lbs) for the jack screws.
  • Yes, the 5787246-1 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the 5787246-1 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and a humidity rating of 95% RH at 40°C.
  • The 5787246-1 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
  • Yes, the 5787246-1 connector is designed to be compatible with other TE Connectivity products, including cable assemblies and PCB connectors, to provide a complete interconnect solution.
