5787617-1 - TE Connectivity

Description: USB type A r/a thru-hole stacked socket

Download 5787617-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

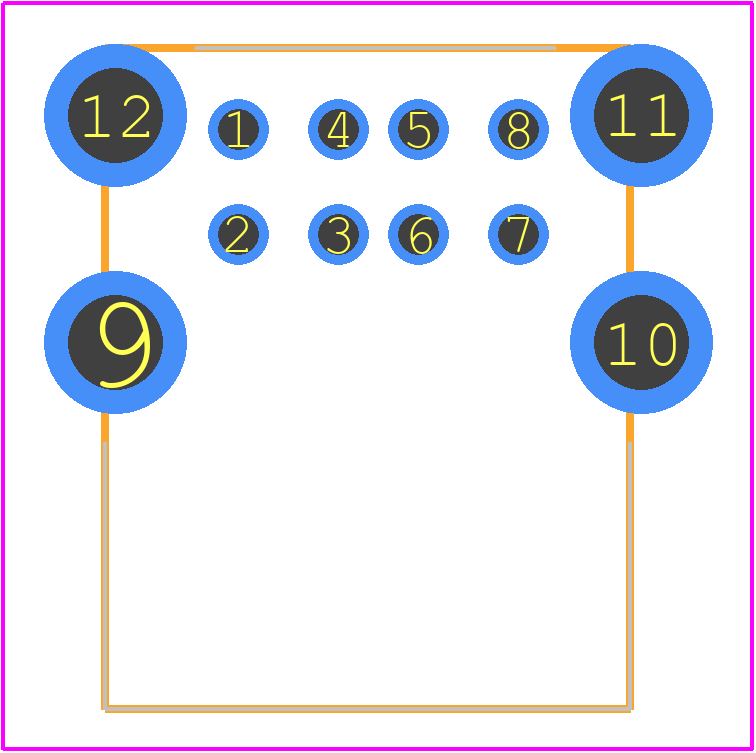

5787617-1 - TE Connectivity PCB footprint - Other - Other - 5787617-1
click to zoom
3D Models
5787617-1 - TE Connectivity  - 3D model - Other - 5787617-1
click to zoom

5787617-1 Details

  • Manufacturer Part Number:

    5787617-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    3 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Risk Rank:

    0.65

  • YTEOL:

    6.77

  • Additional Feature:

    OTHER STACKING CONNECTOR: 4 CONTACTS, STACKED

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Body Breadth:

    0.611 inch

  • Body Depth:

    0.669 inch

  • Body Length:

    0.576 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    USB 2.0 A

  • DIN Conformance:

    NO

  • Durability:

    1500 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    .278 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1+1

  • Number of Ports:

    2

  • Number of Rows Loaded:

    1+1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.103 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    29.92u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    COPPER ALLOY

  • Terminal Length:

    0.112 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    .0834 N
