5787962-1 - TE Connectivity

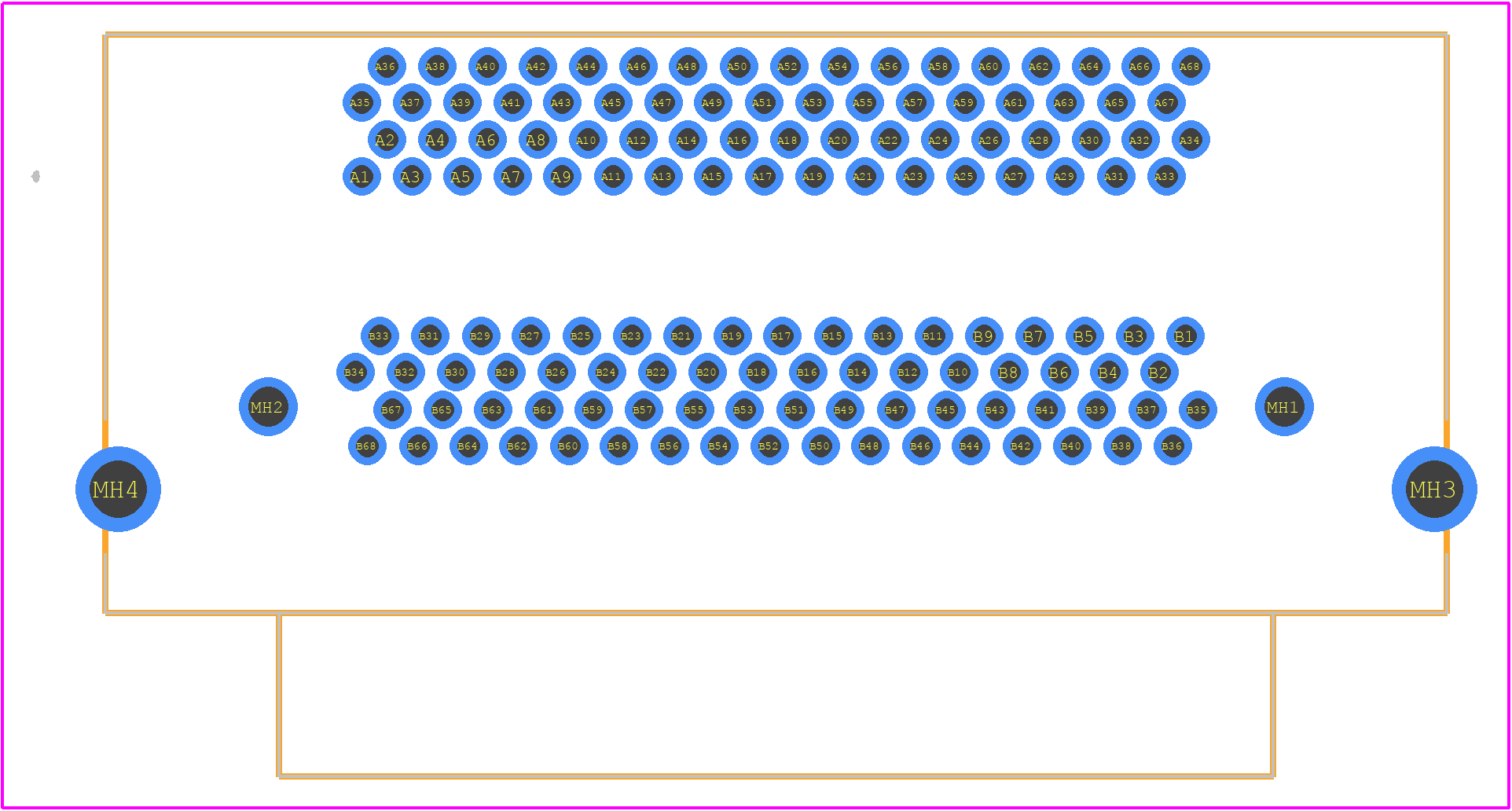

5787962-1 Details

• Manufacturer Part Number:

  5787962-1

• Brand Name:

  AMP

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  TE Connectivity

• YTEOL:

  7

• Additional Feature:

  OTHER STACKING CONNECTOR 68 CONTACTS

• Board Mounting Option:

  SOLDERABLE RETENTION CLIPS

• Body Breadth:

  0.466 inch

• Body Length:

  1.681 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  DOCKING CONNECTOR

• Contact Design:

  PREASSEM CONN

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  FEMALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  10 mΩ

• Contact Style:

  DUAL PRONG

• DIN Conformance:

  NO

• EMI Shielded:

  YES

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  .6672 N

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYETHYLENE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mains Connector Rating:

  115/230VAC

• Mating Contact Pitch:

  0.031 inch

• Mating Contact Row Spacing:

  0.045 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  M2X0.4

• Mounting Option 2:

  THREADED

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  PANEL

• Number Of Connectors:

  TWO

• Number Of PCB Rows:

  4+4

• Number of Ports:

  1

• Number of Rows Loaded:

  4

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  5.08 mm

• Panel Mount:

  NO

• Plating Thickness:

  30u inch

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  UL

• Shell Finish:

  NICKEL

• Shell Material:

  CARBON STEEL

• Terminal Length:

  0.089 inch

• Terminal Pitch:

  0.8 mm

• Termination Type:

  SOLDER AND SURFACE MOUNT

• Total Number of Contacts:

  136

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  .0834 N
