57GE-40240-751-FA - DDK

Description: The 57GE series consists of straight DIP-type connectors with fittings covered by a metal shell, which is a countermeasure against electromagnetic radiation that helps to reduce noise.

Download 57GE-40240-751-FA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

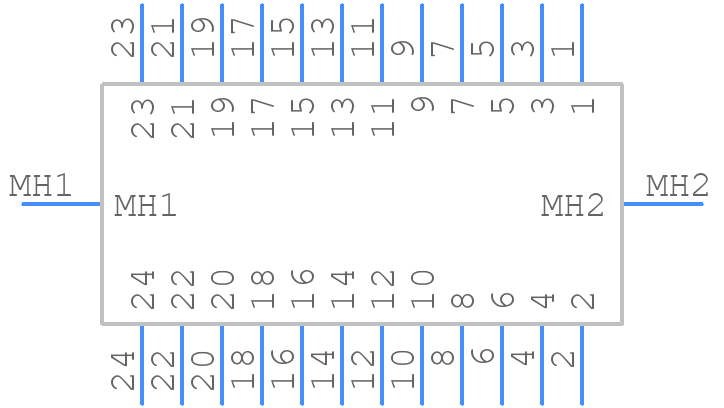

57GE-40240-751-FA - DDK - PCB symbol
click to zoom
PCB Footprints

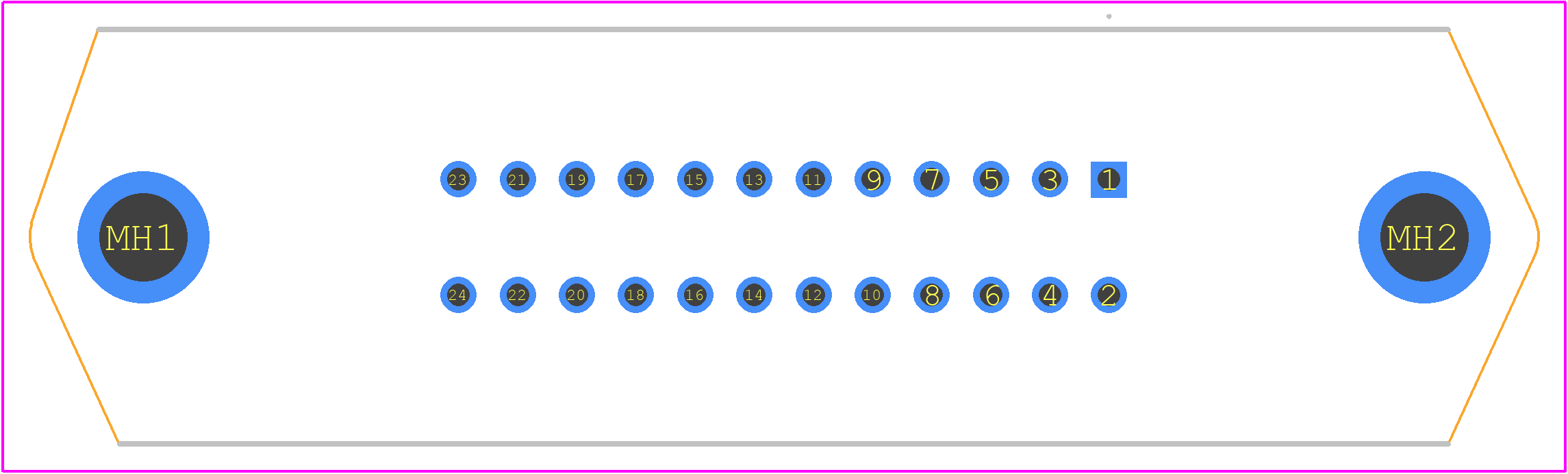

57GE-40240-751-FA - DDK PCB footprint - Other - Other - 57GE-40240-751-FA-3
click to zoom
3D Models
57GE-40240-751-FA - DDK - 3D model - Other - 57GE-40240-751-FA-3
click to zoom

57GE-40240-751-FA Details

  • Manufacturer Part Number:

    57GE-40240-751-FA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    DDK Ltd

  • Additional Feature:

    SHILEDED

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS/STEEL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

57GE-40240-751-FA Frequently Asked Questions (FAQs)

  • The operating temperature range of the 57GE-40240-751-FA is -40°C to +85°C, as specified by DDK Ltd.
  • Yes, the 57GE-40240-751-FA is RoHS (Restriction of Hazardous Substances) compliant, meeting the EU's environmental regulations.
  • DDK Ltd recommends storing the 57GE-40240-751-FA in a dry, cool place with a temperature range of 10°C to 30°C and relative humidity below 60%.
  • While the 57GE-40240-751-FA is designed to be rugged, it's essential to consult with DDK Ltd or a qualified engineer to determine its suitability for high-vibration environments, as it may require additional testing or customization.
  • The typical lead time for delivery of the 57GE-40240-751-FA varies depending on the quantity, region, and availability. It's best to contact DDK Ltd or an authorized distributor for the most up-to-date lead time information.
