57LE-20360-7700D35G footprint, schematic symbol and 3D model by DDK

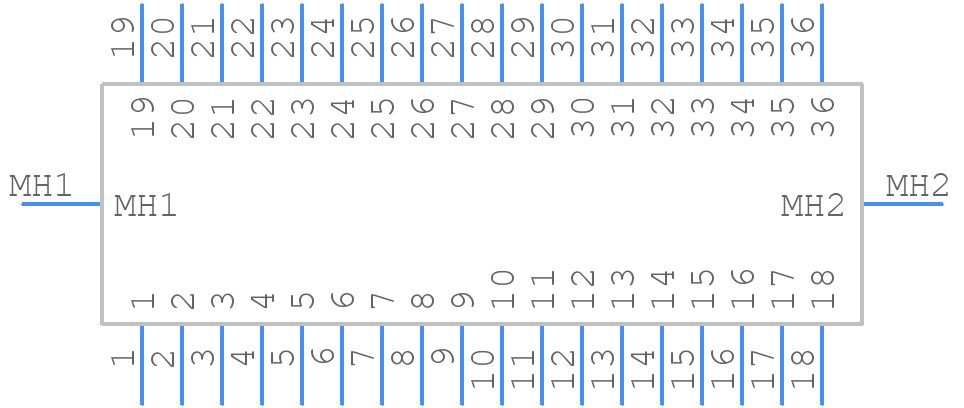

Symbol

click to zoom

PCB Footprints

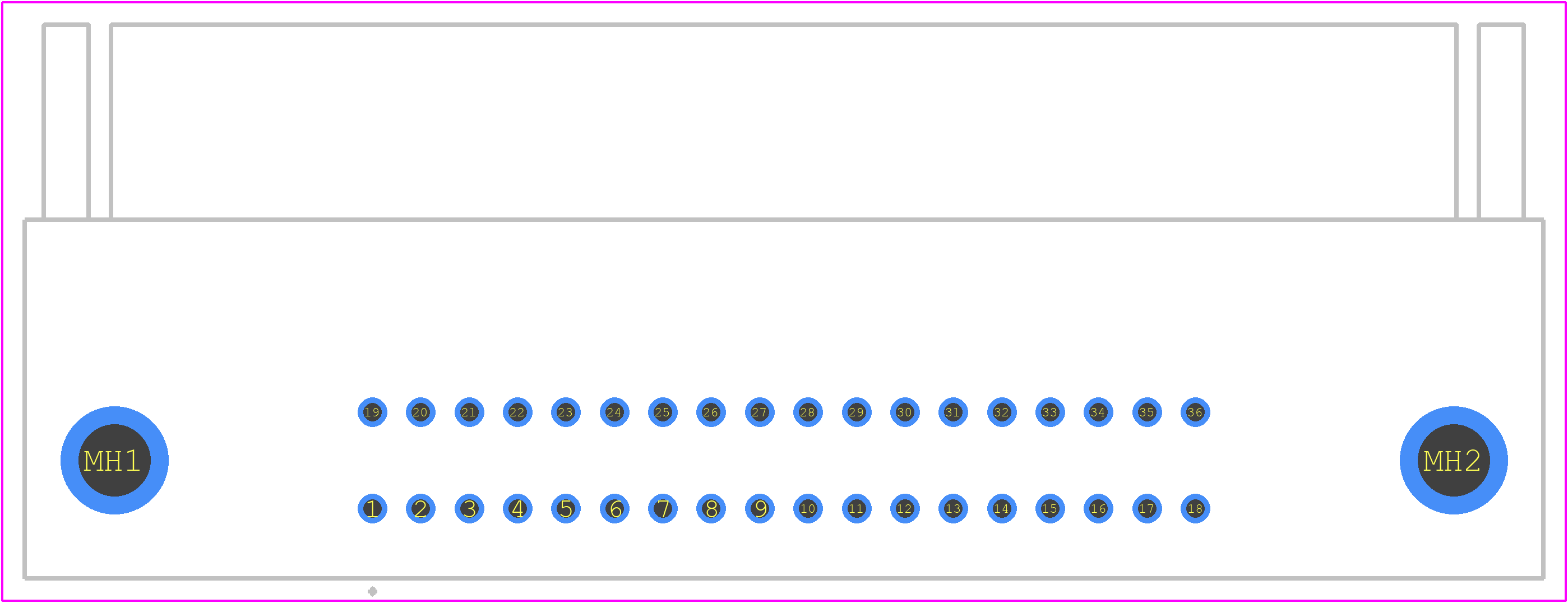

57LE-20360-7700D35G - DDK PCB footprint - Other - Other - 57LE-20360-7700D35G-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 57LE-20360-7700D35G
Part Number 57LE-20360-7700D35G
Manufacturer DDK
Pin Count 38
Part Category Connector
Package Category Other
Footprint Name Other - 57LE-20360-7700D35G-1
Released Date Jun 2, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

57LE-20360-7700D35G Details

Manufacturer Part Number:
57LE-20360-7700D35G
Part Life Cycle Code:
Transferred
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
DDK Ltd
YTEOL:
2
Connector Type:
RIBBON D CONNECTOR
Contact Finish Mating:
AU ON NI
Contact Finish Termination:
TIN OVER NICKEL
Contact Material:
COPPER ALLOY

Trust Checks

Community Provided

System Verified

Community Approved

57LE-20360-7700D35G Overview

Use the download button to access the 57LE-20360-7700D35G schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 57LE-, or try a keyword search, such as Telecom and Datacom Connectors
