57LE-40240-7700D12-FA footprint, schematic symbol and 3D model by DDK

Symbol

click to zoom

PCB Footprints

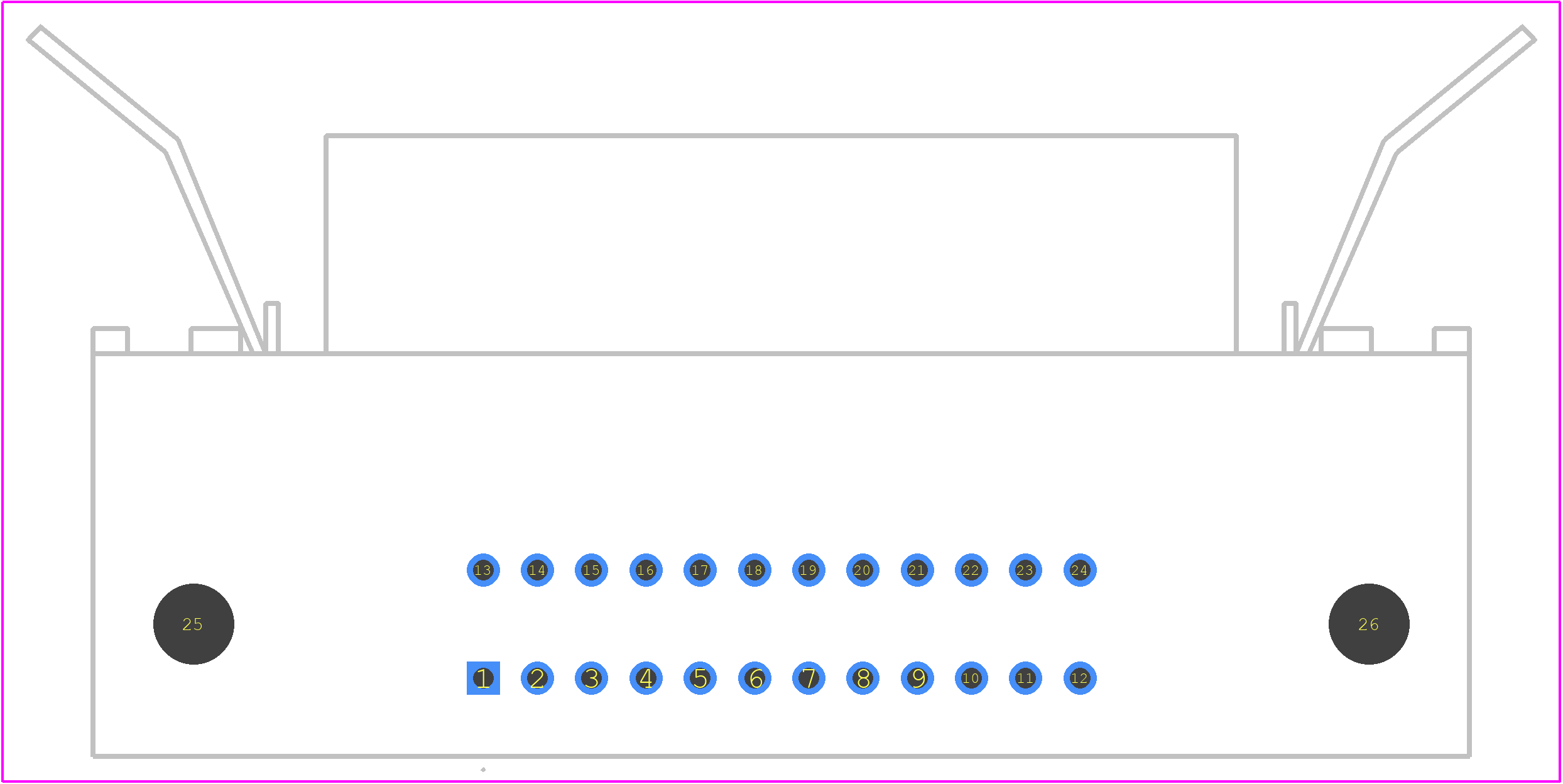

57LE-40240-7700D12-FA - DDK PCB footprint - Other - Other - 57LE-40240-7700D12-FA-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 57LE-40240-7700D12-FA
Part Number 57LE-40240-7700D12-FA
Manufacturer DDK
Pin Count 24
Part Category Connector
Package Category Other
Footprint Name Other - 57LE-40240-7700D12-FA-3
Released Date Feb 3, 2025
Last Modified Date Feb 4, 2025 12:12 AM UTC
Pinout / Pin List Click Here (Member Only)

57LE-40240-7700D12-FA Details

Manufacturer Part Number:
57LE-40240-7700D12-FA
Part Life Cycle Code:
Transferred
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
DDK Ltd
Connector Type:
RIBBON D CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Material:
COPPER ALLOY
