- Part Number 57NC5FX
- Manufacturer Switchcraft
- Pin Count 6
- Part Category Connector
- Package Category Other
- Footprint Name Other - 57NC5FX
- Released Date Sep 29, 2024
- Last Modified Date Sep 29, 2024 1:11 PM UTC
- Pinout / Pin List Click Here (Member Only)
57NC5FX Details
-
Manufacturer Part Number:
57NC5FX
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Switchcraft Conxall
-
YTEOL:
7
-
Body/Shell Style:
RECEPTACLE
-
Connector Type:
DIN CONNECTOR
-
Contact Gender:
FEMALE
57NC5FX Frequently Asked Questions (FAQs)
-
The recommended torque value for the 57NC5FX connector is 10-12 in-lbs (1.1-1.4 Nm) for the coupling nut and 5-7 in-lbs (0.6-0.8 Nm) for the cable clamp.
-
Yes, the 57NC5FX connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
-
The 57NC5FX connector can accommodate cables with a maximum diameter of 0.375 inches (9.5 mm).
-
Yes, the 57NC5FX connector is compatible with other Switchcraft Conxall connectors, including the 57NC3FX and 57NC4FX, allowing for flexibility in design and application.
-
The 57NC5FX connector has an IP67 rating, meaning it is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes.
Trust Checks
Expert Contribution
System Verified
Community Approved
57NC5FX Overview

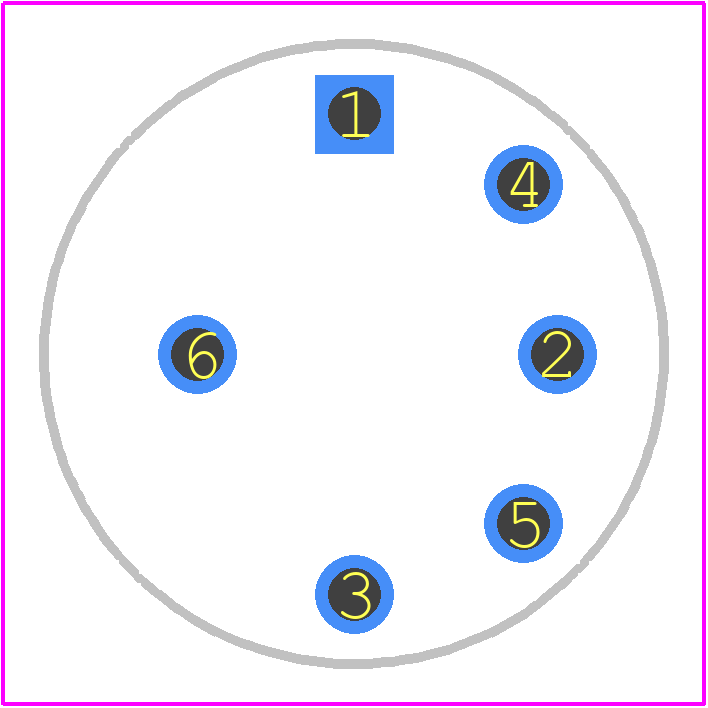

Use the download button to access the 57NC5FX schematic symbol, PCB footprint, and 3D model.
